With Rear Heated Seats

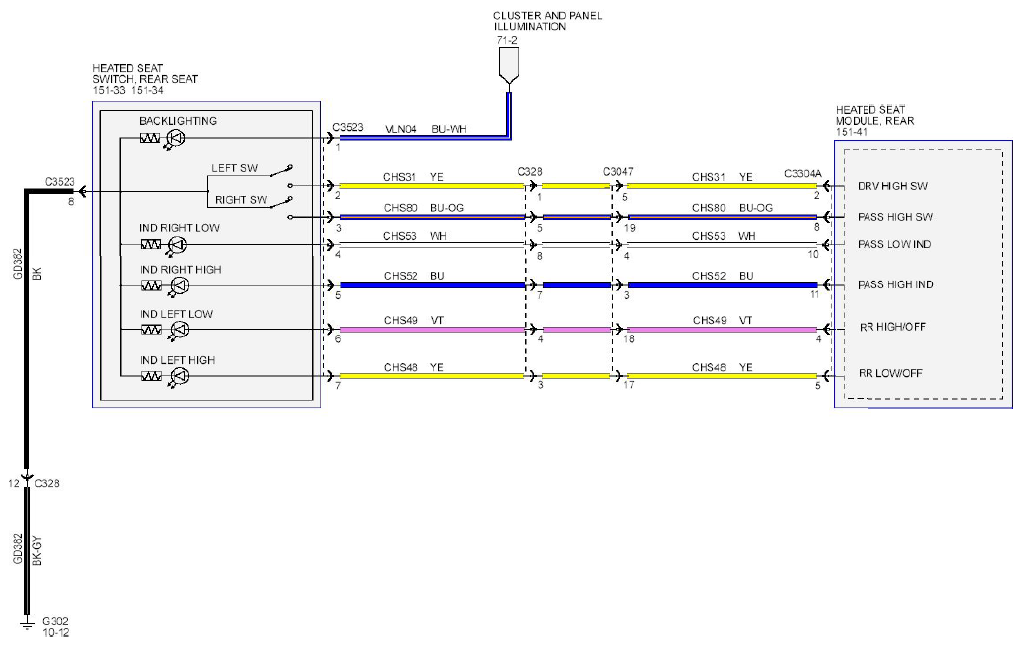

Fig 1: Climate Controlled Seats Wiring Diagram - With Rear Heated Seats (1 Of 5)
G08745451Courtesy of FORD MOTOR CO.

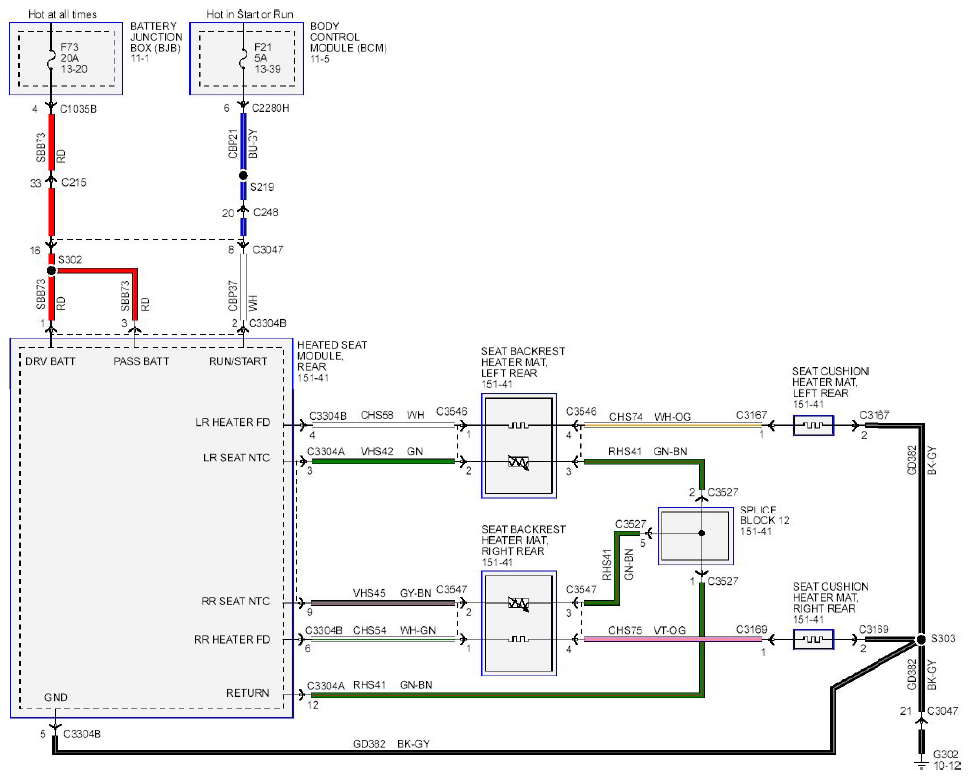

Fig 2: Climate Controlled Seats Wiring Diagram - With Rear Heated Seats (2 Of 5)
G08745452Courtesy of FORD MOTOR CO.

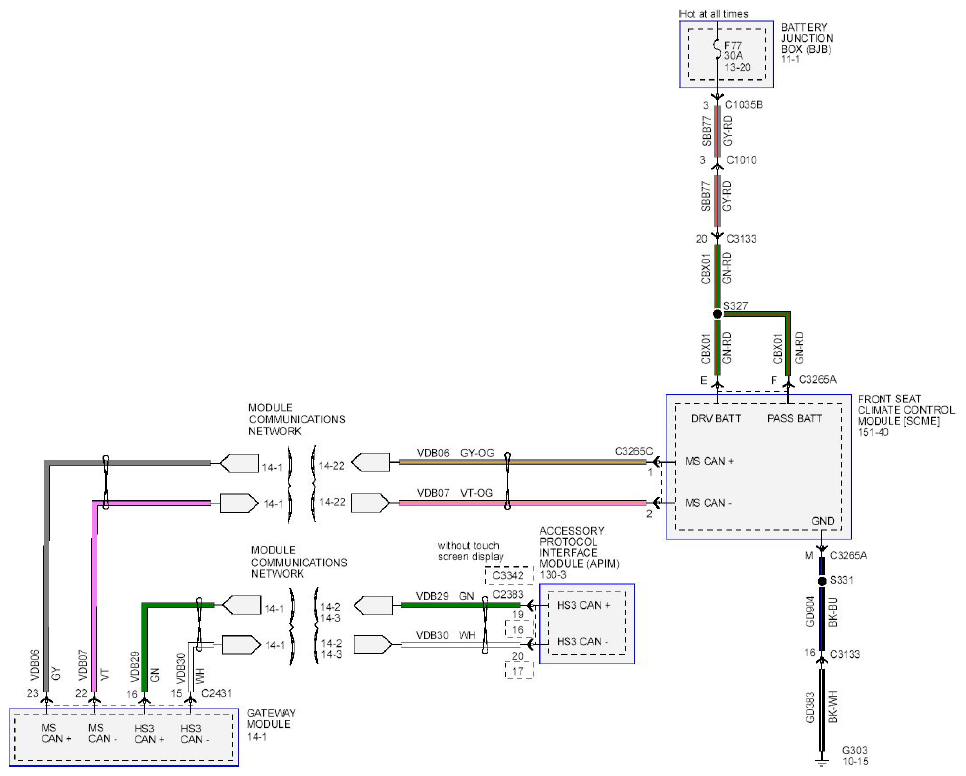

Fig 3: Climate Controlled Seats Wiring Diagram - With Rear Heated Seats (3 Of 5)
G08745453Courtesy of FORD MOTOR CO.

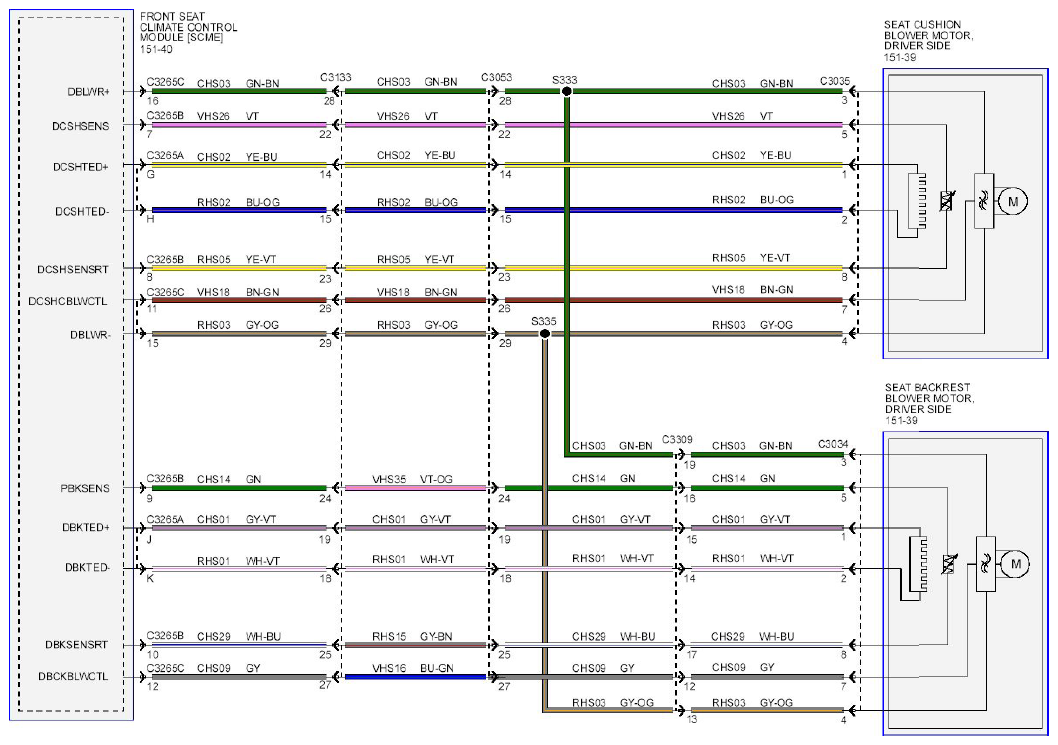

Fig 4: Climate Controlled Seats Wiring Diagram - With Rear Heated Seats (4 Of 5)
G08745454Courtesy of FORD MOTOR CO.

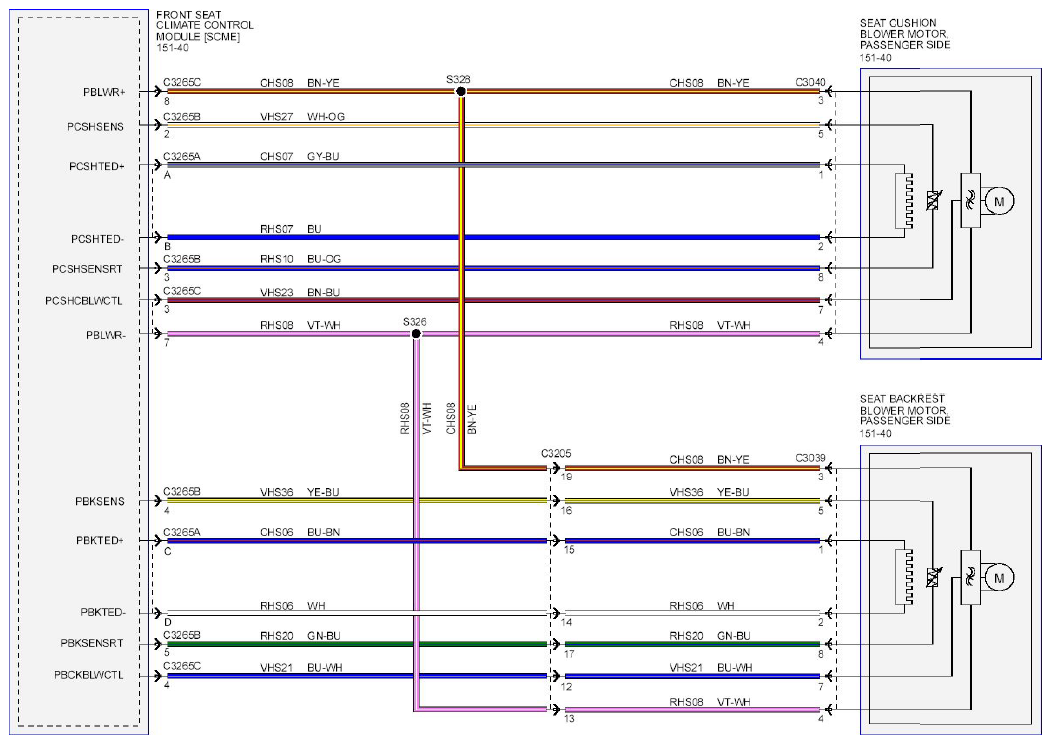

Fig 5: Climate Controlled Seats Wiring Diagram - With Rear Heated Seats (5 Of 5)
G08745455Courtesy of FORD MOTOR CO.
