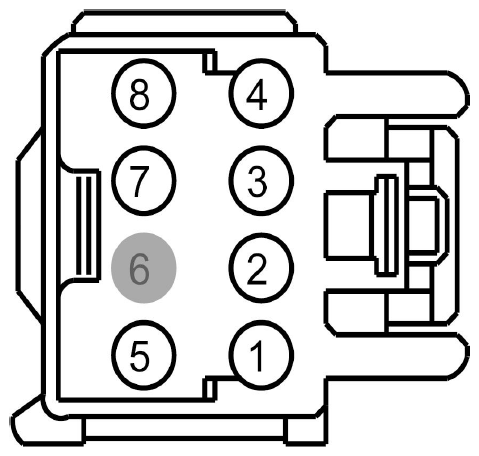

Seat Backrest Blower Motor, Passenger Side Connector End View (C3039)

Fig 1: Identifying Seat Backrest Blower Motor, Passenger Side Connector End View (C3039)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS06 (BU-BN)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER +
2	RHS06 (WH)	14	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER -
3	CHS08 (BN-YE)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN +
4	RHS08 (VT-WH)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN -
5	VHS36 (YE-BU)	20	SENSOR - BACK TEMP. PASSENGER
6	*	*	Not Used
7	VHS21 (BU-WH)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL
8	RHS20 (GN-BU)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP.

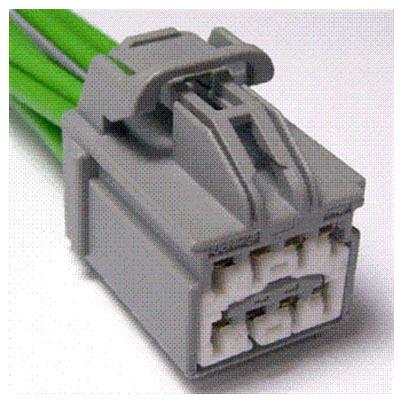

Available Pigtail Kits
Pigtail Kit Part Number WPT-1128	Service Part Number: 3U2Z-14S411-BCB  Gauge: 16  Pin material: Silver  Cavities: 8  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Mirror - Sideview Solenoid - Brake Shift Park Interlock Switch - Headlamp Switch - Power Window - Quarter Glass Switch - Sliding Door Contact
