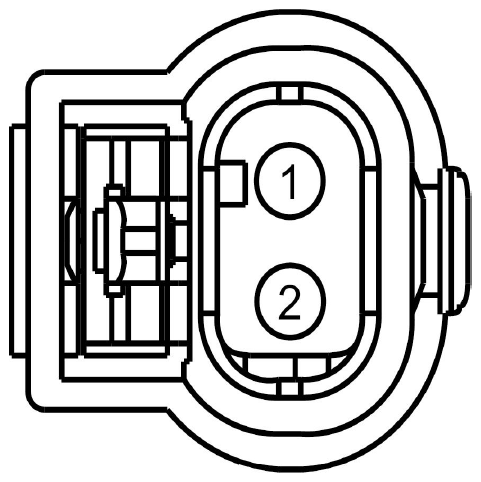

Variable Camshaft Timing 22 (VCT22) Solenoid Connector End View (C1611)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBK02 (GN) | 20 | FUSE - 2 OR CIRCUIT BREAKER (VPWR) | |
| 2 | CE443 (BN-VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE (VCT22) |

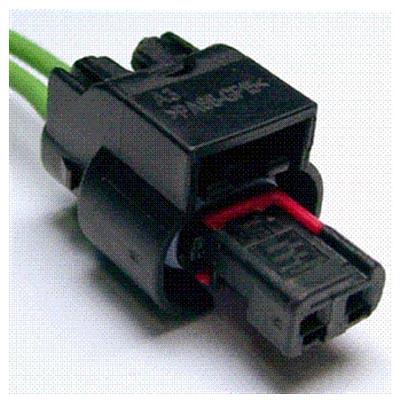

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1251 | Service Part Number: CU2Z-14S411-DA Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses
|
