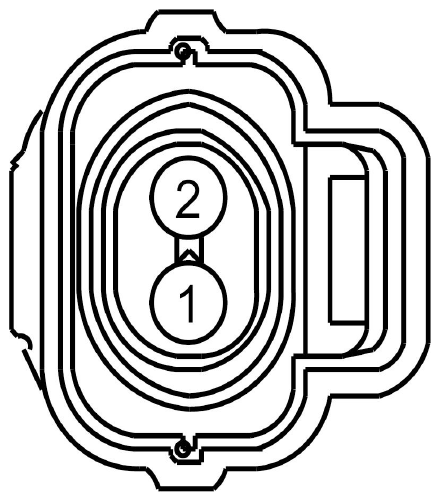

Variable Camshaft Timing 12 (VCT12) Solenoid Connector End View (C1671)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR) | |
| 2 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT12) |

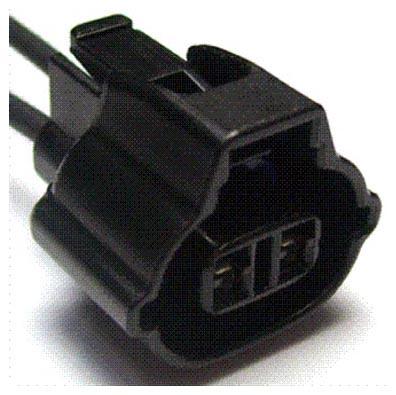

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1269 | Service Part Number: CU2Z-14S411-SA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
