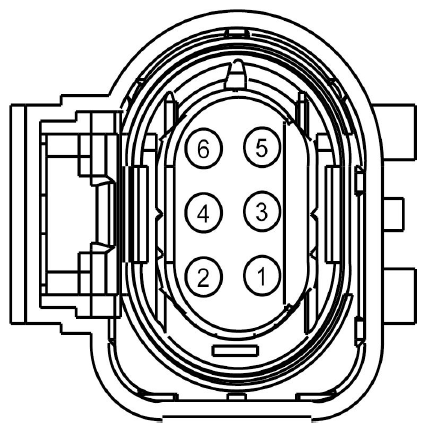

| 1 |
LE451 (BN-YE) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) |
|
| 2 |
LE448 (GY-BU) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) |
|
| 3 |
CE235 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UO2SHTR11) |
|
| 4 |
CBK02 (GN) |
18 |
FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) |
2.0L |
| 4 |
CBK02 (GN) |
16 |
FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) |
1.6L |
| 5 |
LE452 (GN) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11) |
|
| 6 |
VE826 (BN-VT) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) |
|
