Turbocharger (TC) WASTEGATE Regulating Valve Solenoid Connector End View (C1672)

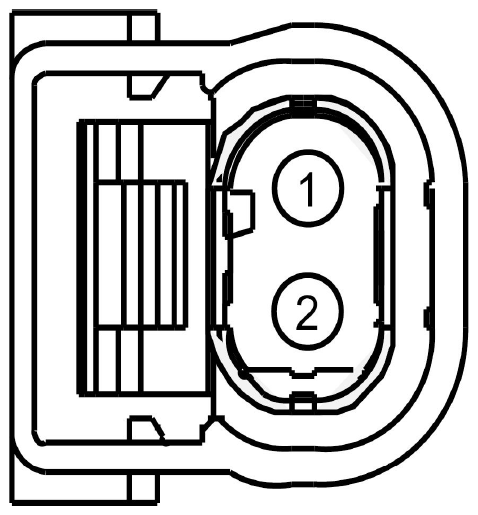

Fig 1: Identifying Turbocharger (TC) Wastegate Regulating Valve Solenoid Connector End View (C1672)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)
2	CE460 (VT-WH)	18	CTRL MOD. - POWERTRAIN # WASTEGATE SOLENOID (WGT_CV)

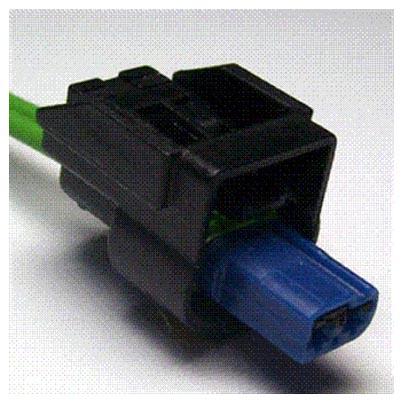

Available Pigtail Kits
Pigtail Kit Part Number WPT-1275	Service Part Number: CU2Z-14S411-AKA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Turbocharger Waste Gate
