Starter Motor Connector End View (C1715A)

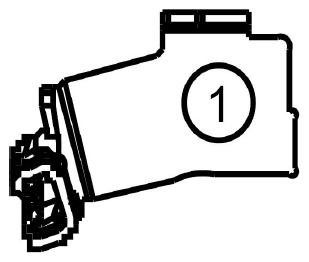

Fig 1: Identifying Starter Motor Connector End View (C1715A)
G08755821Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SDC02 (RD) 4 BATTERY - # PLUS 2.0L/2.5L/3.7L
