Engine Cooling Bypass Solenoid Connector End View (C1676)

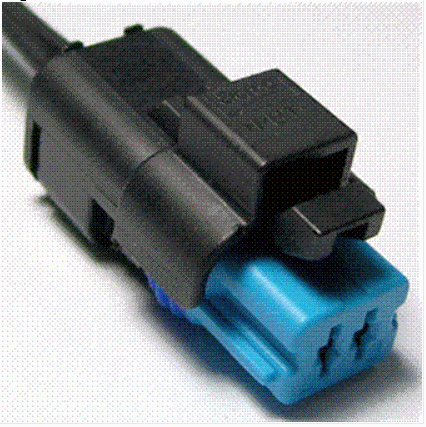

Fig 1: Identifying Engine Cooling Bypass Solenoid Connector End View (C1676)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE167 (YE-OG)	18	CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE
2	CBK03 (GY)	18	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1352	Service Part Number: DU2Z-14S411-ZA  Gauge: 18  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Solenoid - EGR Cooler Bypass Valve - Coolant
