Crankshaft Position (CKP) Sensor Connector End View (C1728)

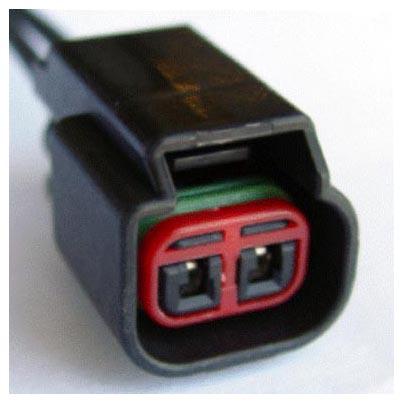

Fig 1: Identifying Crankshaft Position (CKP) Sensor Connector End View (C1728)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE135 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP-)
2	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKP+)

Available Pigtail Kits
Pigtail Kit Part Number WPT-759	Service Part Number: 3U2Z-14S411-SLA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses CD Changer Lamp - Front Cornering/Turn Pump - Vacuum Relay - Daytime Running Lamp (DRL) Switch - Cargo Lamp
Pigtail Kit Part Number WPT-986	Service Part Number: 3U2Z-14S411-SLB  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Coil - Ignition Lamp - License Sensor - Cam Shaft Position Sensor - Crank Shaft Position
