Coil On Plug (Cop) 4 Connector End View (C1604)

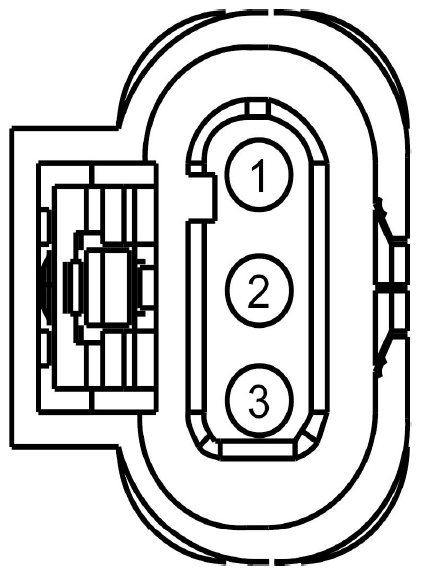

Fig 1: Identifying Coil On Plug (COP) 4 Connector End View (C1604)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4B)
2	GD108 (BK-VT)	16	GROUND - CHASSIS/BATTERY
3	CBK04 (VT)	16	FUSE - 4 OR CIRCUIT BREAKER (VPWR)

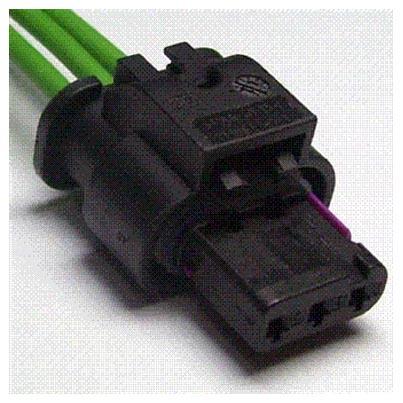

Available Pigtail Kits
Pigtail Kit Part Number WPT-1287	Service Part Number: CU2Z-14S411-YA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Coil - Ignition Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA)
