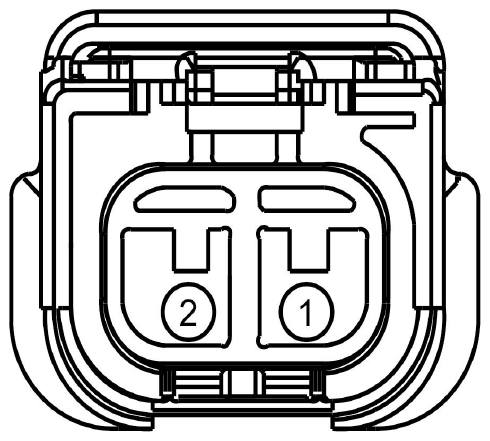

Coil On Plug (Cop) 3 Connector End View (C1732)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE305 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B) | |
| 2 | CBK04 (VT) | 18 | FUSE - 4 OR CIRCUIT BREAKER (VPWR) |

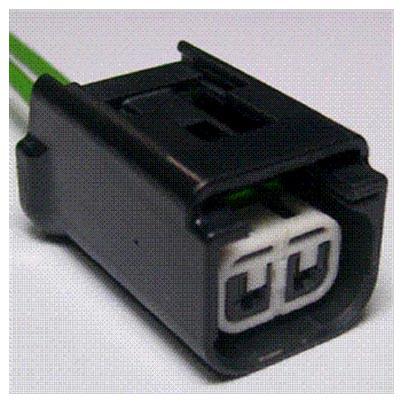

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1133 | Service Part Number: BU2Z-14S411-FA Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
