Camshaft Position 21 (CMP21) Sensor Connector End View (C1625)

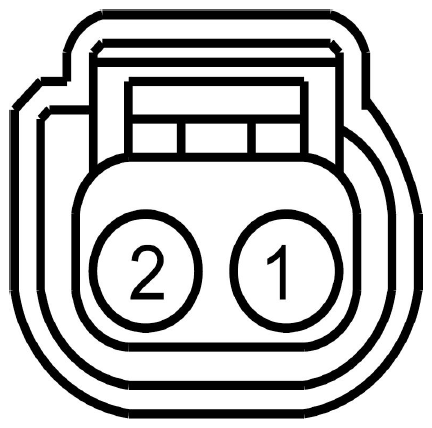

Fig 1: Identifying Camshaft Position 21 (CMP21) Sensor Connector End View (C1625)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RE429 (GY-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION)
2	VE707 (GN-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP2) [CID-H] (CID2)

Available Pigtail Kits

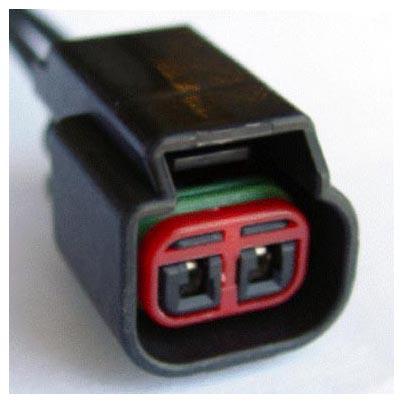

Pigtail Kit Part Number WPT-759	Service Part Number: 3U2Z-14S411-SLA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses CD Changer Lamp - Front Cornering/Turn Pump - Vacuum Relay - Daytime Running Lamp (DRL) Switch - Cargo Lamp

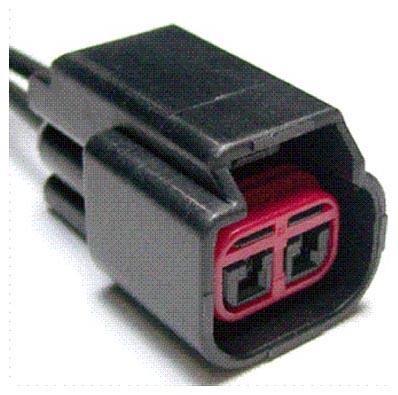

Pigtail Kit Part Number WPT-986	Service Part Number: 3U2Z-14S411-SLB  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Coil - Ignition Lamp - License Sensor - Cam Shaft Position Sensor - Crank Shaft Position
