Air Conditioning (A/C) Pressure Transducer Connector End View (C1260)

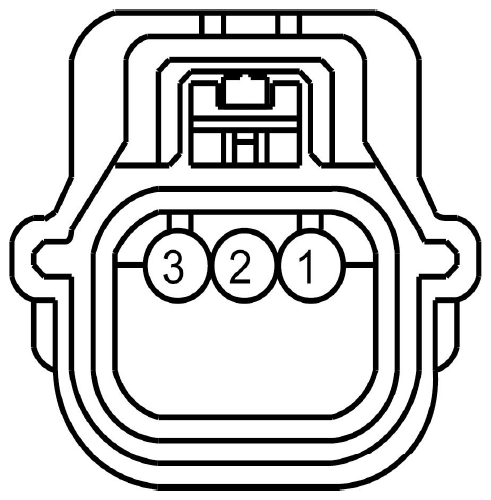

Fig 1: Identifying Air Conditioning (A/C) Pressure Transducer Connector End View (C1260)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	RE407 (YE-VT)	18	SIGNAL RETURN (SIGRTN)
2	VH433 (VT-OG)	18	TRANSDUCER - A/C PRESSURE (ACPT) +
3	LE423 (GN-VT)	18	REFERENCE VOLTAGE (VREF)

Available Pigtail Kits

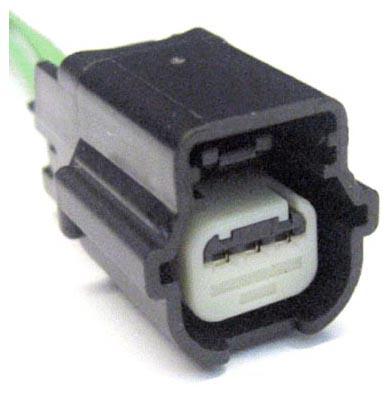

Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling

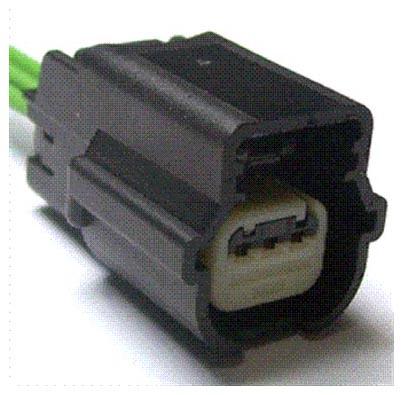

Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB Gauge: 20 Pin material: Silver Cavities: 3 Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
