Passenger Seat Rear Height Motor Connector End View (C330)

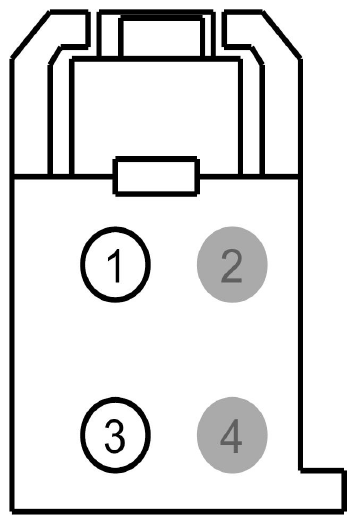

Fig 1: Identifying Passenger Seat Rear Height Motor Connector End View (C330)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPS26 (YE-BU)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN
2	*	*	Not Used
3	CPS27 (BU-BN)	14	SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP
4	*	*	Not Used

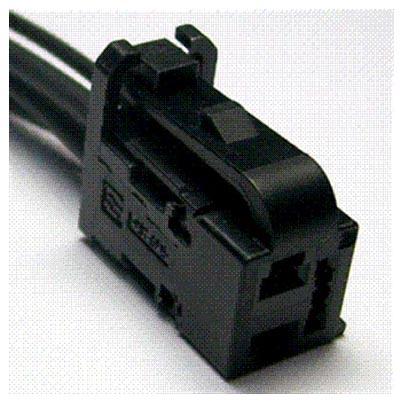

Available Pigtail Kits
Pigtail Kit Part Number WPT-1311	Service Part Number: CU2Z-14S411-BAA  Gauge: 20  Pin material: Tin  Cavities: 4  Vehicle Uses Motor - Seat Height (Front) Motor - Seat Recline
