Passenger Airbag Connector End View (C256B)

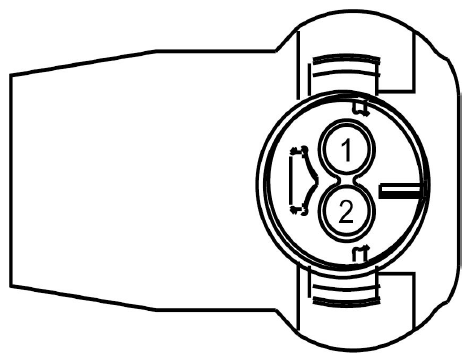

Fig 1: Identifying Passenger Airbag Connector End View (C256B)
G08755364Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CR104 (YE-GY) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 +
2 RR104 (WH-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 2 -
