Passenger Airbag Connector End View (C256A)

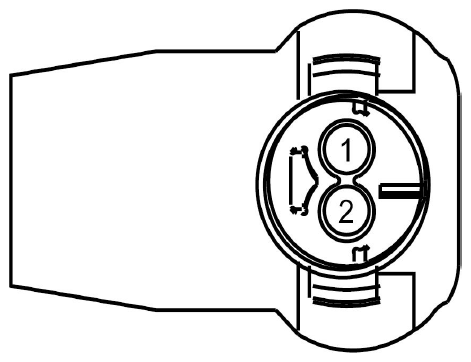

Fig 1: Identifying Passenger Airbag Connector End View (C256A)
G08755363Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CR103 (GY-BU) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 +
2 RR103 (VT-GN) 20 CTRL MOD. - AIR BAG FRONT PASSENGER 1 -
