Glove Compartment Lamp Connector End View (C254)

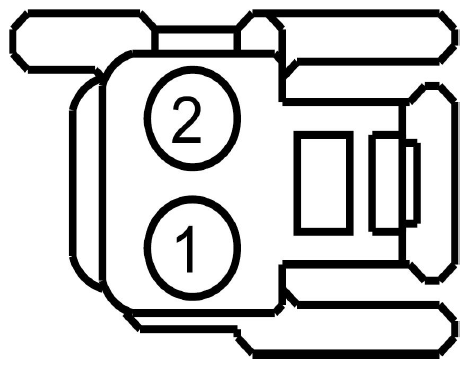

Fig 1: Identifying Glove Compartment Lamp Connector End View (C254)

G08755361

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	GD216 (BK-VT)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT

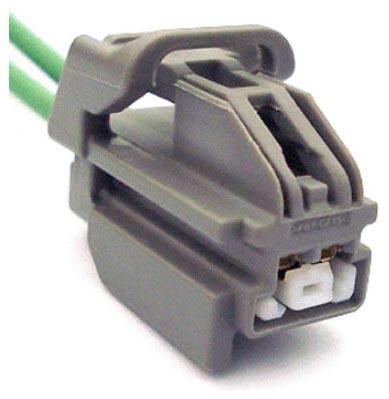

Available Pigtail Kits

Pigtail Kit Part Number WPT-965

G08755362

Service Part Number: 3U2Z-14S411-AEB
Gauge: 14
Pin material: Silver
Cavities: 2
Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate
Element - Heated Seat
Lamp - CHMSL (Center High Mount Stop Lamp)
Module - Heated Seat
Motor - Adjustable Pedal
Motor - Decklid/Liftgate
Sensor - Air Charge Temperature
Sensor - EATC In Car Temperature
Speaker - Subwoofer
Switch - Adjustable Pedal
Switch - Brake Deactivation
Switch - Brake Pressure
Switch - Clutch Pedal Position
Switch - Stop Lamp
Switch - Third Row Power Folding Seat
