Driver Safety Belt Retractor PRETENSIONER Connector End View (C323)

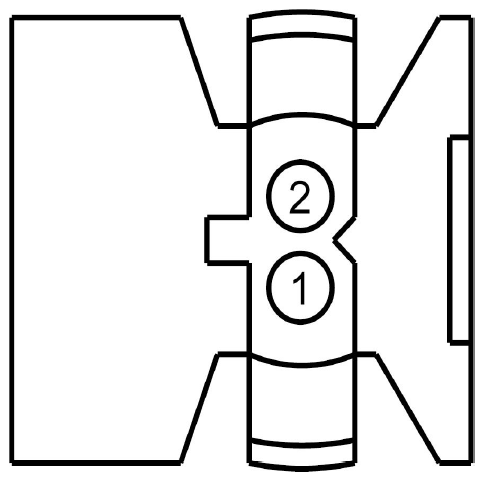

Fig 1: Identifying Driver Safety Belt Retractor Pretensioner Connector End View (C323)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR170 (GN)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) +
2	RR170 (BN-BU)	20	CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) -

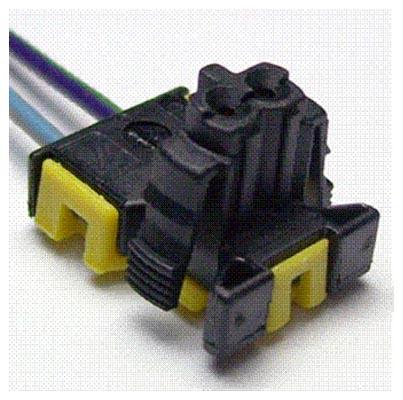

Available Pigtail Kits
Pigtail Kit Part Number WPT-1230	Service Part Number: BU2Z-14S411-BPA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Squib - Airbag (Passenger)
