Clutch Pedal Position (CPP) Switch Connector End View (C257)

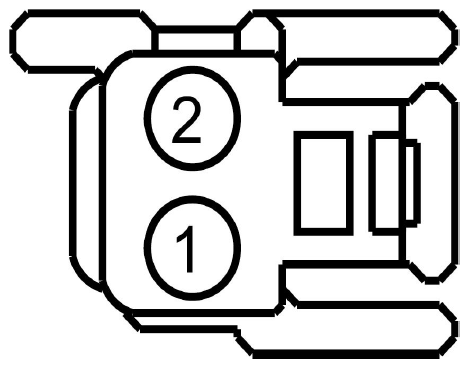

Fig 1: Identifying Clutch Pedal Position (CPP) Switch Connector End View (C257)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE903 (BU-OG)	20	SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT)
2	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT

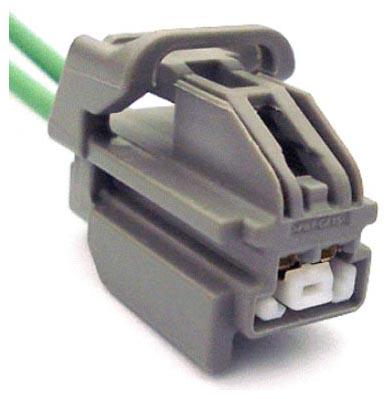

Available Pigtail Kits

Pigtail Kit Part Number WPT-965

Service Part Number: 3U2Z-14S411-AEB  Gauge: 14  Pin material: Silver  Cavities: 2  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Module - Heated Seat Motor - Adjustable Pedal Motor - Decklid/Liftgate Sensor - Air Charge Temperature Sensor - EATC In Car Temperature Speaker - Subwoofer Switch - Adjustable Pedal Switch - Brake Deactivation Switch - Brake Pressure Switch - Clutch Pedal Position Switch - Stop Lamp Switch - Third Row Power Folding Seat
