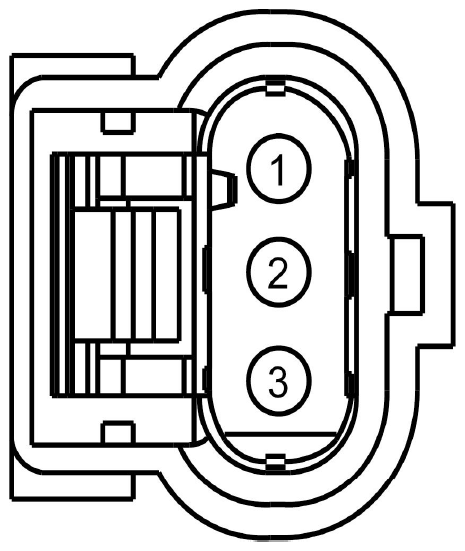

Cabin Heater Coolant Pump Connector End View (C163)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | |
| 2 | CBK03 (GY) | 18 | FUSE - 12 OR CIRCUIT BREAKER | |
| 3 | CH307 (GY-BU) | 18 | CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR) |

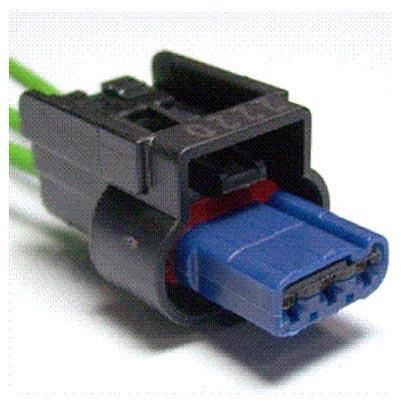

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1202 | Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|
