Speaker, Center Parcel Shelf Connector End View (C4436)

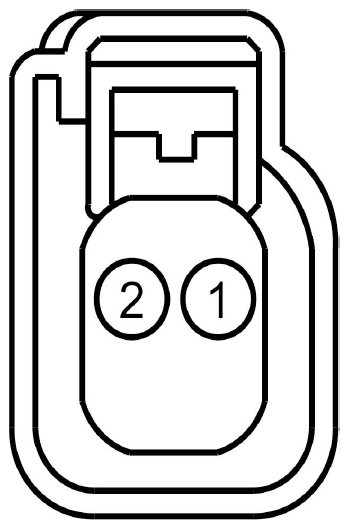

Fig 1: Identifying Speaker, Center Parcel Shelf Connector End View (C4436)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VME30 (GN-BN)	18	CTRL MOD. - AUDIO # SPEAKER CENTER REAR +
2	RME30 (VT-BN)	18	CTRL MOD. - AUDIO # SPEAKER CENTER REAR -

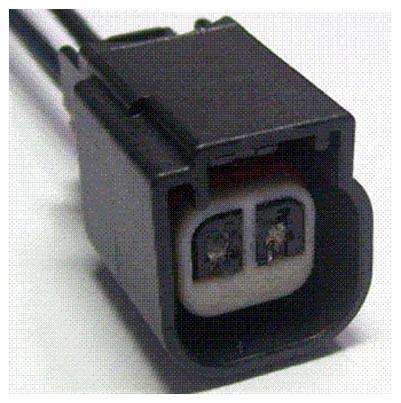

Available Pigtail Kits

Pigtail Kit Part Number WPT-1052

Service Part Number: 3U2Z-14S411-JLB  Gauge: 14  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses A/C Compressor Clutch Actuator - Door Lock Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - LH - Sliding Door Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Actuator - Door Lock - RH - Sliding Door Actuator - Liftgate Glass Lamp - Headlamp - Low Beam Lamp - License Lamp - Side Marker Motor - Power Window - LH - Rear Pump - Fuel (External) Sensor - Side Impact Solenoid - Brake Shift Park Interlock Speaker - Door (front) Speaker - Door (rear) Speaker - Front Speaker - Rear Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear
