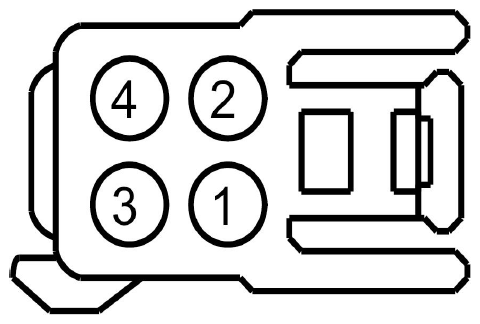

Seat Backrest Heater Mat, Right Rear Connector End View (C3547)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CHS54 (WH-GN) | 20 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | |
| 2 | VHS45 (GY-BN) | 20 | SENSOR - CUSHION TEMP REAR LEFT | |
| 3 | RHS41 (GN-BN) | 20 | CTRL MOD. - HOT/COLD SEAT # REAR CUSHION TEMP | |
| 4 | CHS74 (WH-OG) | 20 | HEATER - SEAT REAR LEFT CUSHION/BACK |
| Available Pigtail Kits | |
|---|---|

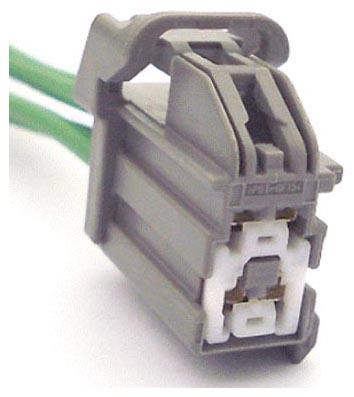

| Pigtail Kit Part Number WPT-977 | Service Part Number: 3U2Z-14S411-LUB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses
|
