Safety Belt Buckle Assembly, 2ND Row Connector End View (C3646)

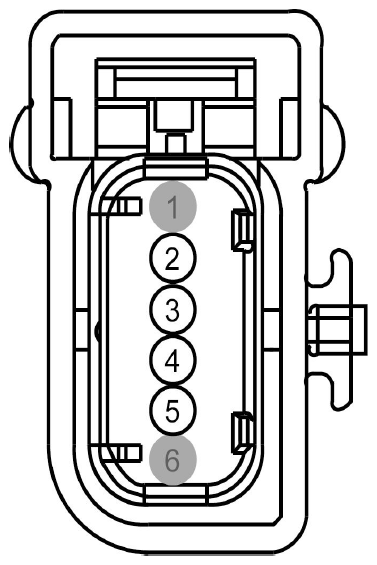

Fig 1: Identifying Safety Belt Buckle Assembly, 2Nd Row Connector End View (C3646)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	*	*	Not Used
2	CR206 (BN)	20	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD
3	RR137 (BU-GY)	20	CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER -
4	CR204 (VT)	20	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE
5	RR137 (BU-GY)	20	CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER -
6	*	*	Not Used

Available Pigtail Kits
Pigtail Kit Part Number WPT-1329	Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt
