Rear Shock Absorber RH Connector End View (C3656)

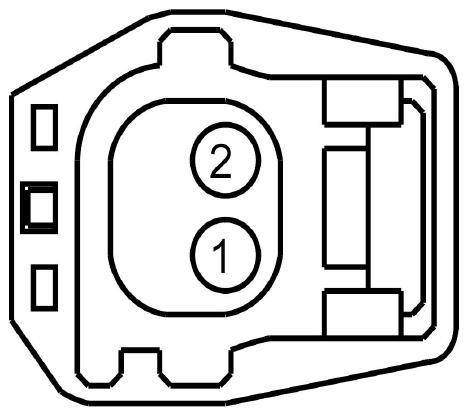

Fig 1: Identifying Rear Shock Absorber RH Connector End View (C3656)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD06 (VT-GY)	18	CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT +
2	RCD06 (BU-BN)	18	CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT -

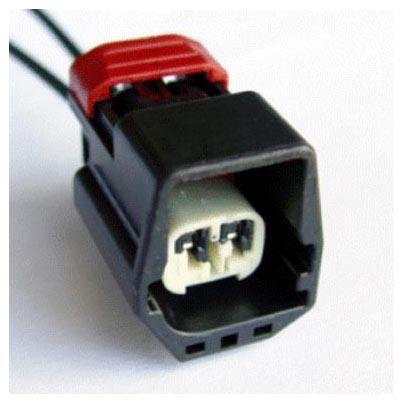

Available Pigtail Kits
Pigtail Kit Part Number WPT-273	Service Part Number: 3U2Z-14S411-GVA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Sensor - Ambient Temp Sensor - Heated Thermostat
