Rear Shock Absorber LH Connector End View (C3655)

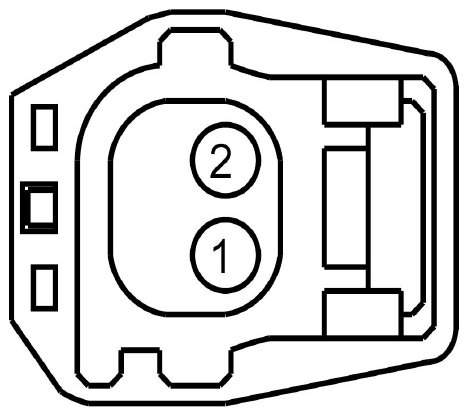

Fig 1: Identifying Rear Shock Absorber LH Connector End View (C3655)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCD05 (GN-BU)	18	CTRL MOD. - CDC # VALVE DAMPER REAR LEFT +
2	RCD05 (YE-BU)	18	CTRL MOD. - CDC # VALVE DAMPER REAR LEFT -

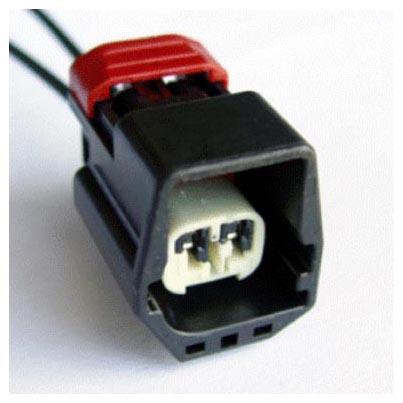

Available Pigtail Kits
Pigtail Kit Part Number WPT-273	Service Part Number: 3U2Z-14S411-GVA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Sensor - Ambient Temp Sensor - Heated Thermostat
