Rear Parking Aid Camera Connector End View (C4360)

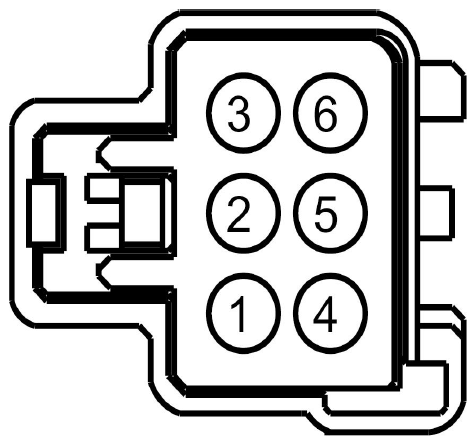

Fig 1: Identifying Rear Parking Aid Camera Connector End View (C4360)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER
2	RMP19 (BN-VT)	20	CAMERA - PARKING AID REAR VIDEO -
3	VMP19 (WH-GN)	20	CAMERA - PARKING AID REAR VIDEO +
4	VDN04 (VT-WH)	20	CTRL MOD. - LIN BUS # SPDJB 4
5	DMP19 (*)	20	CAMERA - PARKING AID REAR VIDEO D
6	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT

Available Pigtail Kits

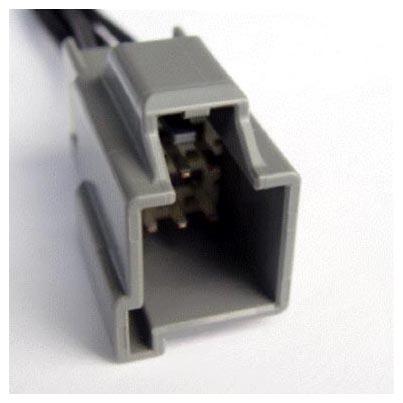

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA  Gauge: 16  Pin material: Tin  Cavities: 6  Vehicle Uses Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

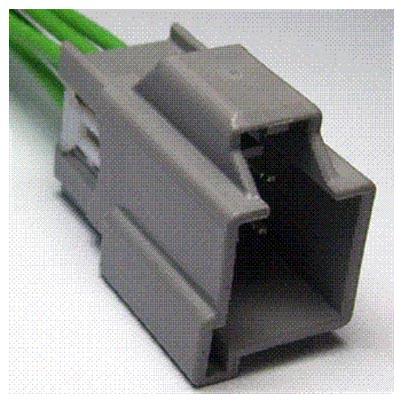

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
