Rear Inner Parking Aid Sensor LH Connector End View (C4010)

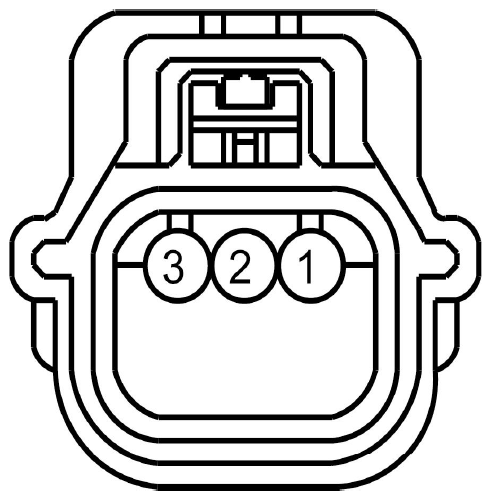

Fig 1: Identifying Rear Inner Parking Aid Sensor LH Connector End View (C4010)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	MKZ
1	LMP07 (BU-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR +	Fusion
2	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	MKZ
2	VMP14 (WH-OG)	18	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	Fusion
3	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	MKZ
3	RMP07 (GN-WH)	18	CTRL MOD. - PARKING AID # SENSORS REAR -	Fusion

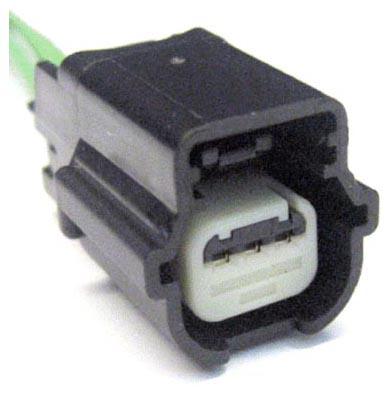

Available Pigtail Kits
Pigtail Kit Part Number WPT-926	Service Part Number: 9U2Z-14S411-CA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Sensor - Front Park Aid (FPA) Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling
Pigtail Kit Part Number WPT-1315	Service Part Number: 9U2Z-14S411-CB  Gauge: 20  Pin material: Silver  Cavities: 3  Vehicle Uses Monitor - Crankcase Ventilation Sensor - Air Suspension Sensor - Front Park Aid (FPA) Sensor - Occupant Classification Sensor - Reverse Park Aide (RPA) Switch - A/C Compressor Clutch Cycling Switch - A/C High Pressure
