Luggage Compartment Lid Power Striker Motor Connector End View (C4339)

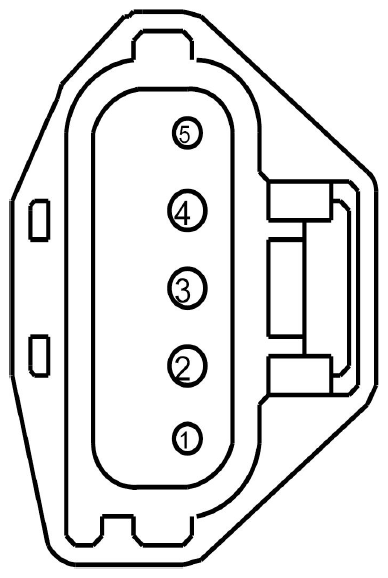

Fig 1: Identifying Luggage Compartment Lid Power Striker Motor Connector End View (C4339)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPR71 (GY-BN)	22	CTRL MOD. - POWER LUGGAGE COMPARTMENT # MOTOR STRIKER (+)
2	CPR61 (BN)	22	CTRL MOD. - POWER LUGGAGE COMPARTMENT # CINCH +
3	CPR65 (BU-GN)	22	LATCH - LUGGAGE COMPARTMENT # LATCH SWITCH FULL
4	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT
5	CPR72 (GN-BU)	22	CTRL MOD. - POWER LUGGAGE COMPARTMENT # MOTOR STRIKER (-)

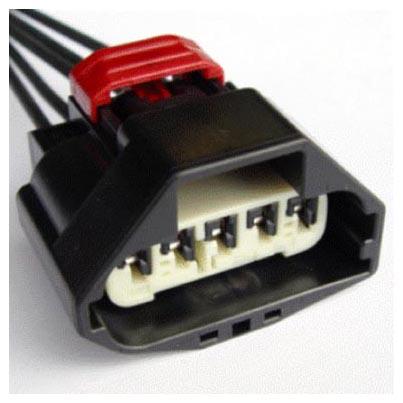

Available Pigtail Kits
Pigtail Kit Part Number WPT-738	Service Part Number: 3U2Z-14S411-BFAA  Gauge: 16  Pin material: Tin  Cavities: 5  Vehicle Uses Relay - Torque On Demand (TOD)
