Luggage Compartment Lid Latch Connector End View (C4424)

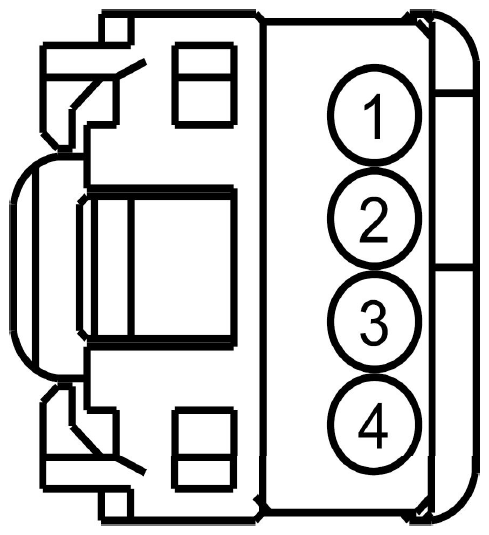

Fig 1: Identifying Luggage Compartment Lid Latch Connector End View (C4424)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPL44 (YE-OG)	20	SWITCH - LUGGAGE COMPARTMENT # AJAR
2	CLN13 (WH-BU)	20	SWITCH - LUGGAGE COMPARTMENT LAMP
3	CPL10 (GN-WH)	18	CTRL MOD. - DOOR LOCK # LUGGAGE COMPARTMENT RELEASE
4	GD347 (BK-VT)	18	GROUND - PILLAR C OR QUARTER PANEL LEFT

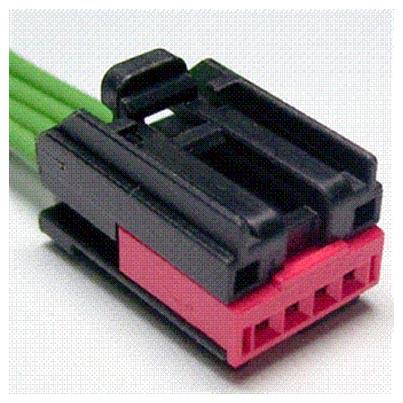

Available Pigtail Kits
Pigtail Kit Part Number WPT-1055	Service Part Number: 3U2Z-14S411-KYB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Actuator - Liftgate Glass Switch - Deck Lid/Lift Gate Ajar Switch - Steering Column Tilt/Telescope
