High Mounted STOPLAMP Connector End View (C4199)

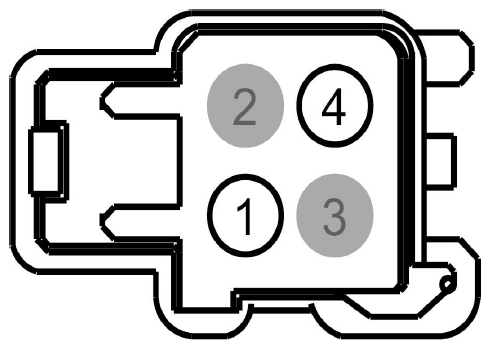

Fig 1: Identifying High Mounted Stoplamp Connector End View (C4199)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT
2	*	*	Not Used
3	*	*	Not Used
4	GD347 (BK-VT)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT

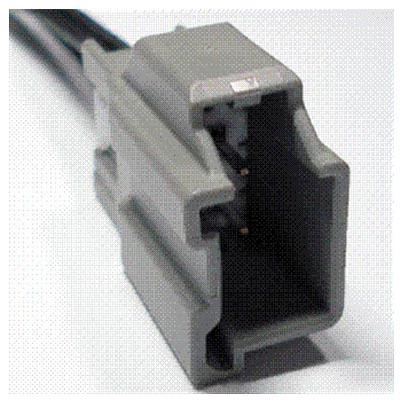

Available Pigtail Kits
Pigtail Kit Part Number WPT-1076	Service Part Number: 3U2Z-14S411-BUB  Gauge: 14  Pin material: Tin (greased)  Cavities: 4  Vehicle Uses Connector - Inline Element - Heated Seat Lamp - Ash Tray Lamp - Courtesy - Footwell Module - Remote Keyless Entry Motor - Heater/AC Blower (Auxiliary) Radio - Amplifier Switch - Convertable Top
