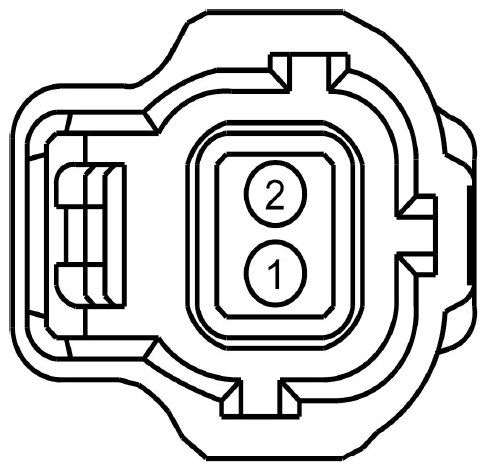

EVAP Canister Vent Valve Connector End View (C4409)

Fig 1: Identifying EVAP Canister Vent Valve Connector End View (C4409)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB18 (YE-RD)	18	FUSE - 18 OR CIRCUIT BREAKER	3.7L
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	2.5L/3.7L
1	CE114 (GN-BU)	20	CTRL MOD. - POWERTRAIN # EVAP CANISTER VENT VALVE (CANV)	1.6L/2.0L
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	1.6L/2.0L
2	CE114 (GN-BU)	18	CTRL MOD. - POWERTRAIN # EVAP CANISTER VENT VALVE (CANV)	2.5L/3.7L

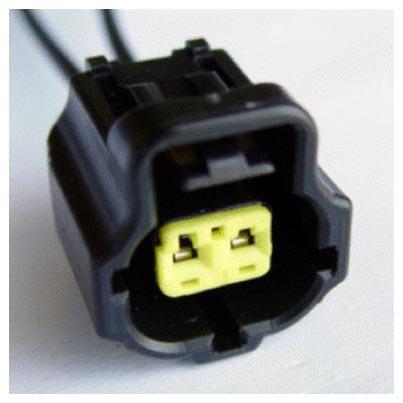

Available Pigtail Kits
Pigtail Kit Part Number WPT-322	Service Part Number: 3U2Z-14S411-JZA  Gauge: 14  Pin material: Tin  Cavities: 2  Vehicle Uses Resistor - Daytime Running Lamp (DRL) Sensor - Air Charge Temperature Sensor - Brake Pressure Solenoid - Canister Vent Switch - Brake Pressure
