STOPLAMP Switch Connector End View (C278)

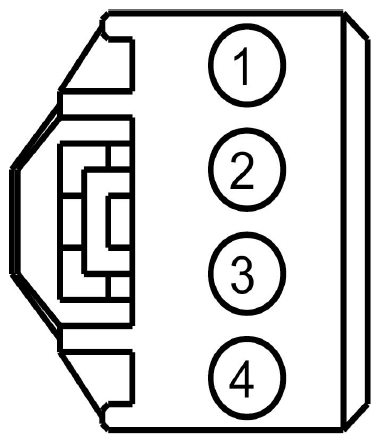

Fig 1: Identifying Stoplamp Switch Connector End View (C278)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB47 (WH-RD)	20	FUSE - 47 OR CIRCUIT BREAKER
2	CES09 (VT-OG)	20	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +
3	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT
4	CCB08 (VT-WH)	20	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN

Available Pigtail Kits

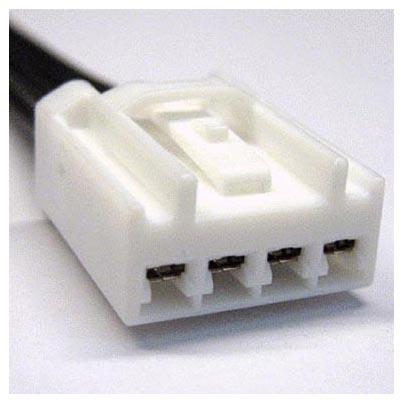

Pigtail Kit Part Number WPT-912	Service Part Number: 8U2Z-14S411-HA  Gauge: 14  Pin material: Tin  Cavities: 4  Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety
