Low Brake Fluid Warning Indicator Switch Connector End View (C124)

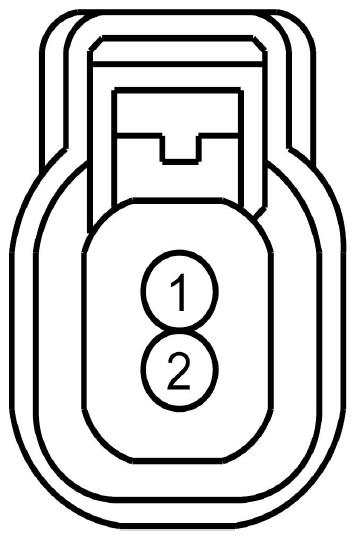

Fig 1: Identifying Low Brake Fluid Warning Indicator Switch Connector End View (C124)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT
2	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID

Available Pigtail Kits

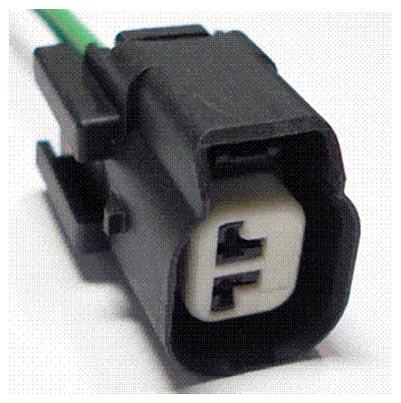

Pigtail Kit Part Number WPT-984
