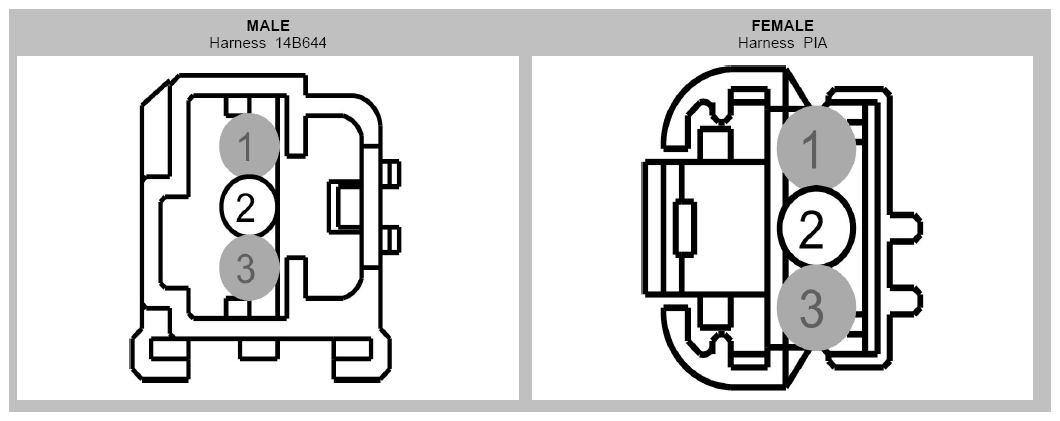

Inline Connector End View (C213)

Fig 1: Identifying Inline Connector End View (C213)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	* (*)	*	PIA - MKZ
2	CME36 (GN-VT)	18	14B644 - MKZ
3	*	*

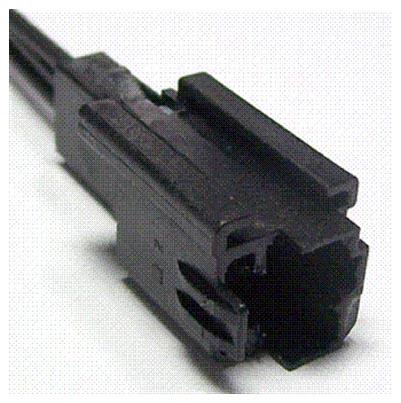

Available Pigtail Kits
Pigtail Kit Part Number WPT-1103	Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses: Lamp - PRNDL Indicator Module - Radio Power Antenna Switch - Overdrive Cancel
