Inline Connector End View (C110)

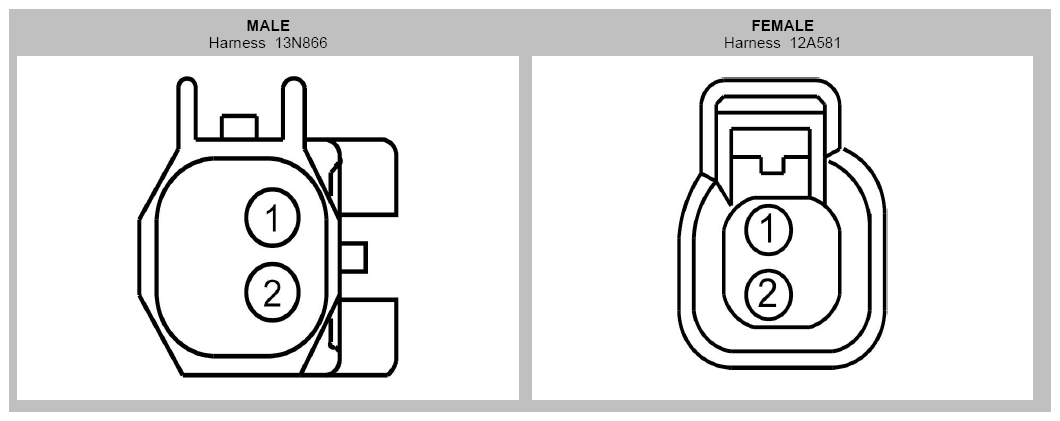

Fig 1: Identifying Inline Connector End View (C110)
G08755224Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 GD120 (BK-GN) 18
2 CRH04 (VT-GN) 18
Available Pigtail Kits

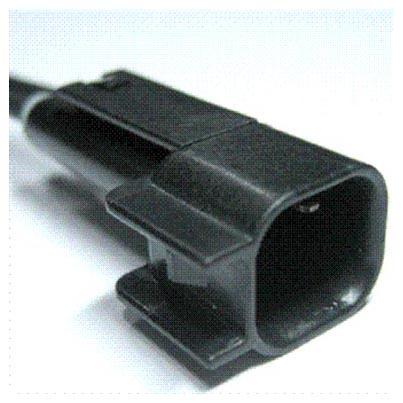

Pigtail Kit Part Number WPT-1193
G08755225
 Service Part Number: 3U2Z-14S411-DCAB
Gauge: 16
Pin material: Tin (greased)
Cavities: 2
Vehicle Uses:
  • Element - Heated Seat
  • Lamp - CHMSL (Center High Mount Stop Lamp)
  • Lamp - Fog/Driving
  • Lamp - Side Marker (Rear Fender)
  • Mirror - Sideview
  • Sensor - Crash (Engine Compartment)
  • Speaker - Tweeter - LH - Front
  • Speaker - Tweeter - RH - Front
