Home >> Ford >> 2013 >> Fusion Titanium, FWD >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- (Except Hybrid) >> Transmission Controls >> With Paddle Shift

With Paddle Shift

Fig 1: Transmission Controls Wiring Diagram - With Paddle Shift (1 Of 3)
G08745307Courtesy of FORD MOTOR CO.

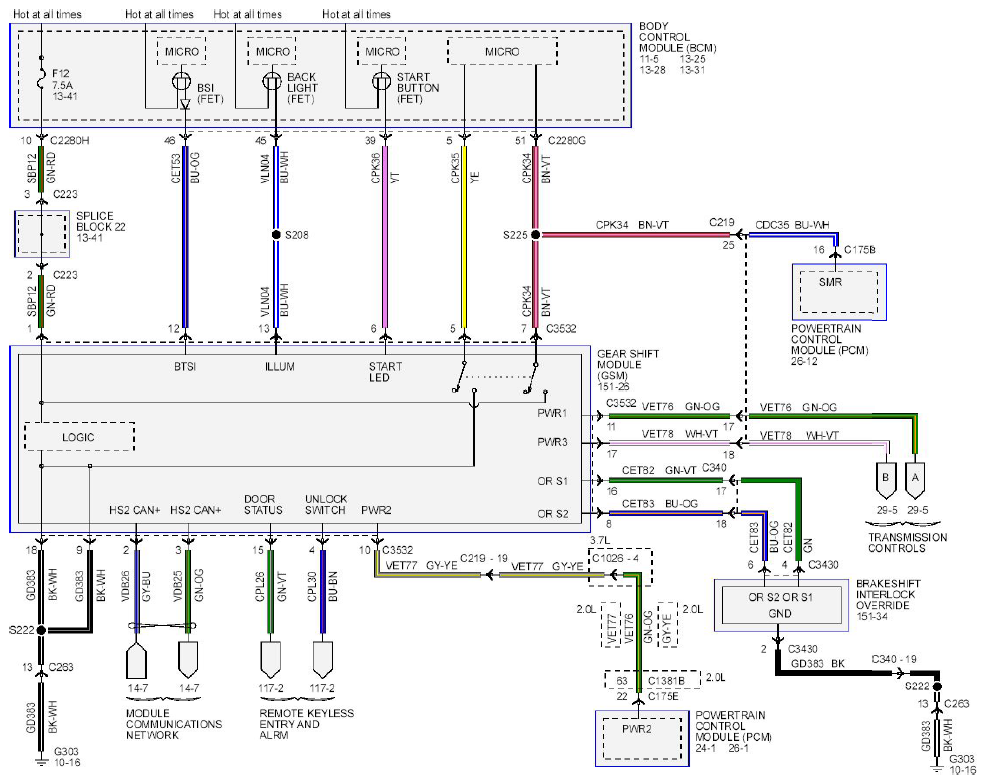

Fig 2: Transmission Controls Wiring Diagram - With Paddle Shift (2 Of 3)
G08745308Courtesy of FORD MOTOR CO.
Fig 3: Transmission Controls Wiring Diagram - With Paddle Shift (3 Of 3)
G08745309Courtesy of FORD MOTOR CO.
