OEM Wiring Diagrams -- (Except Hybrid)
>>
Power Distribution
>>
W/O Adjustable Steering Column
W/O Adjustable Steering Column

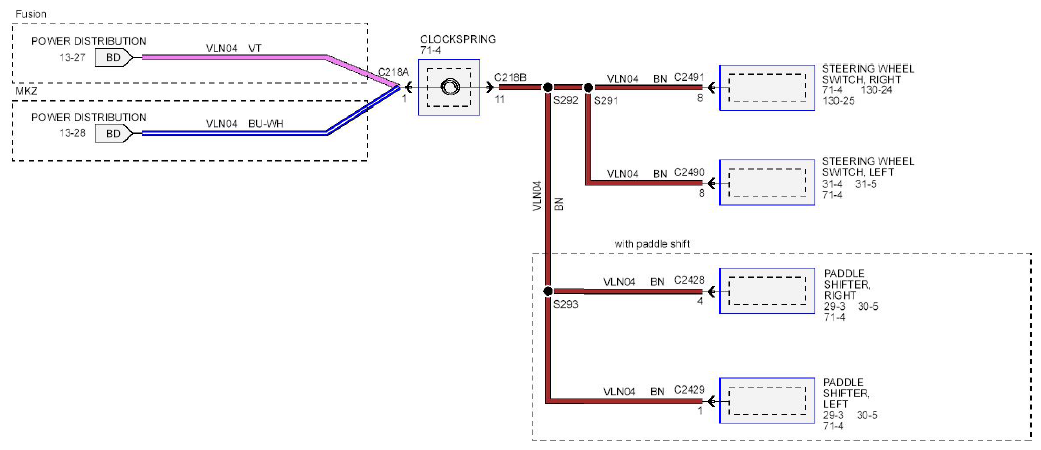

Fig 1: Power Distribution Wiring Diagram - W/O Adjustable Steering Column
Courtesy of FORD MOTOR CO.
