OEM Ground Distribution -- (Except Hybrid): Grounds: MKZ

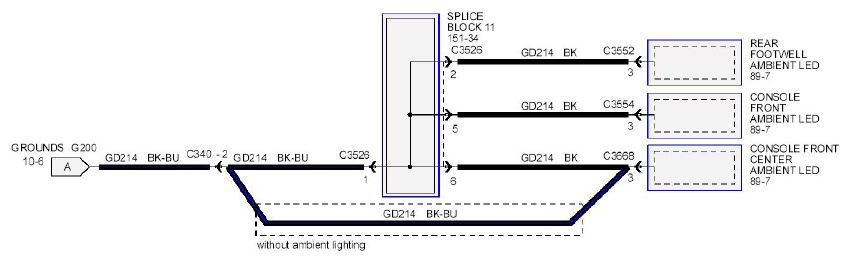

Fig 1: MKZ Wiring Diagram (1 Of 2)

G08745157

Courtesy of FORD MOTOR CO.

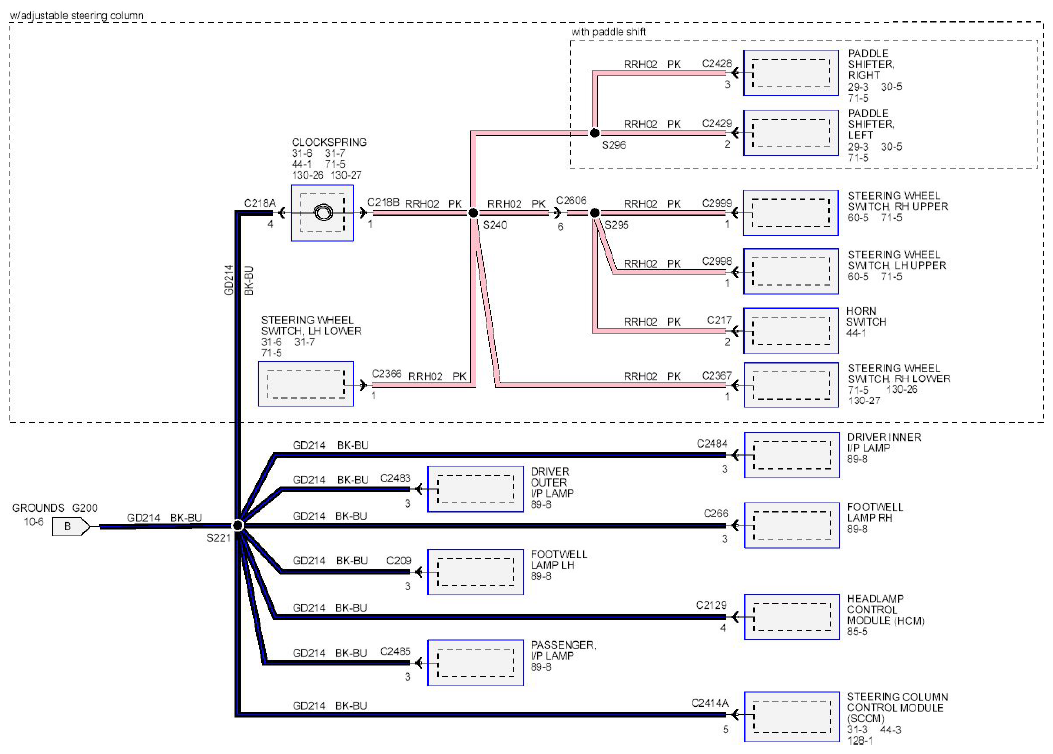

Fig 2: MKZ Wiring Diagram (2 Of 2)

G08745159

Courtesy of FORD MOTOR CO.
