OEM Ground Distribution -- (Except Hybrid): Grounds: G401

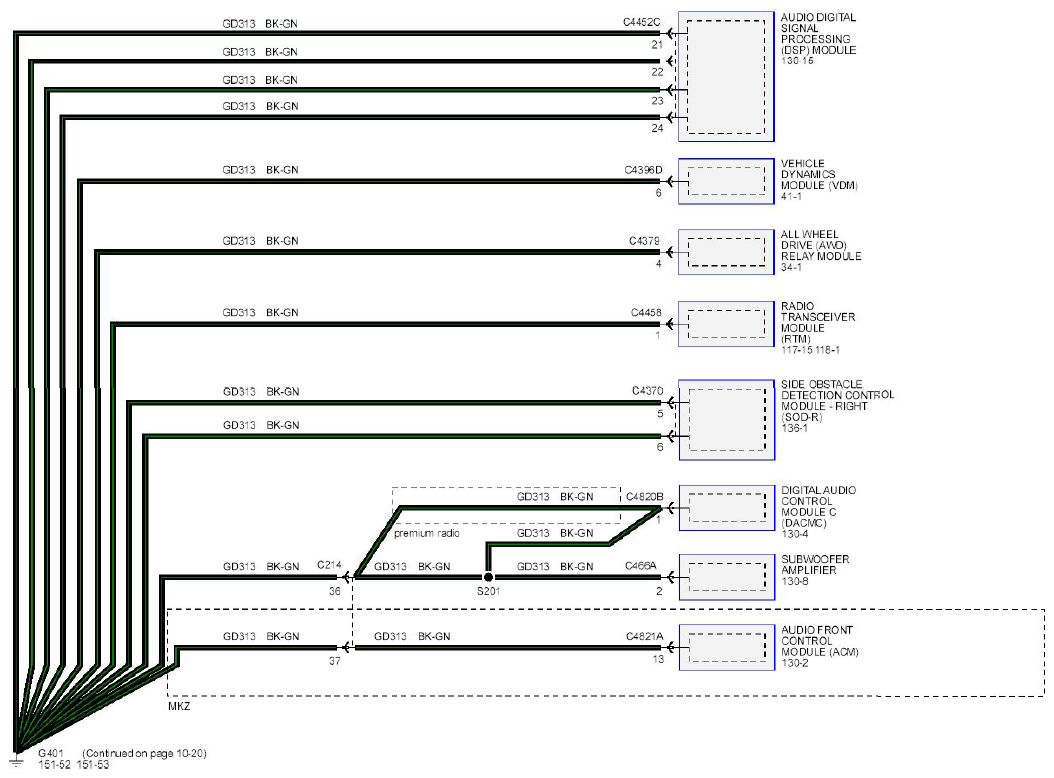

Fig 1: G401 Ground Diagram

G08745169

Courtesy of FORD MOTOR CO.
