OEM Ground Distribution -- (Except Hybrid): Grounds: G303

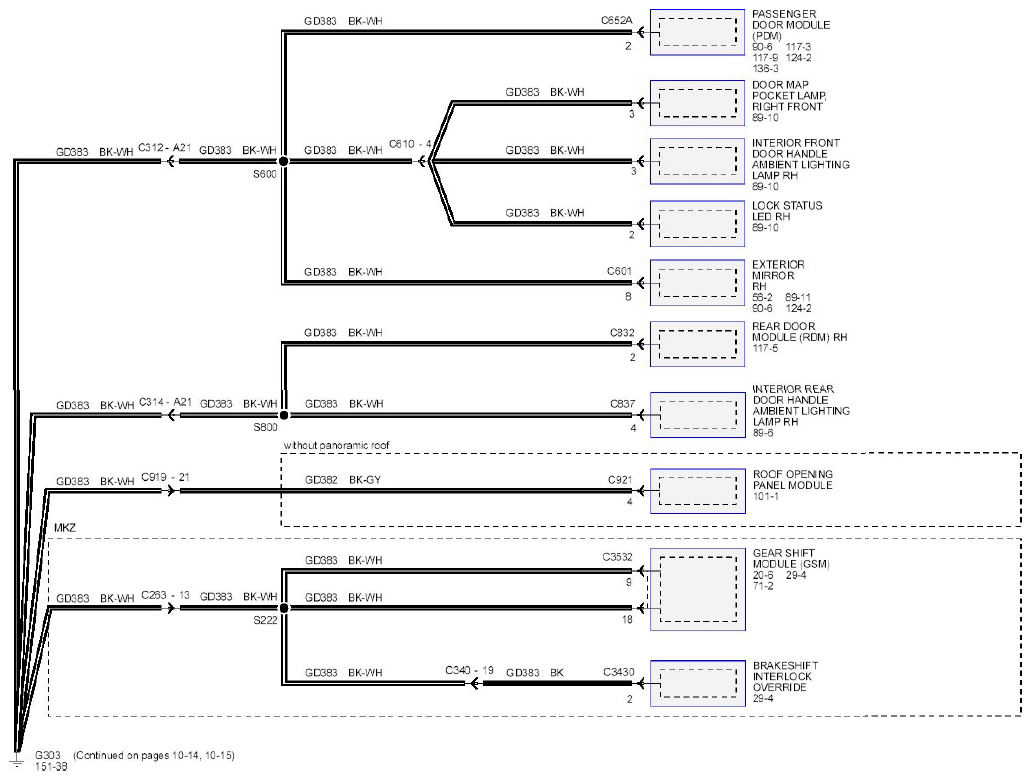

Fig 1: G303 Ground Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

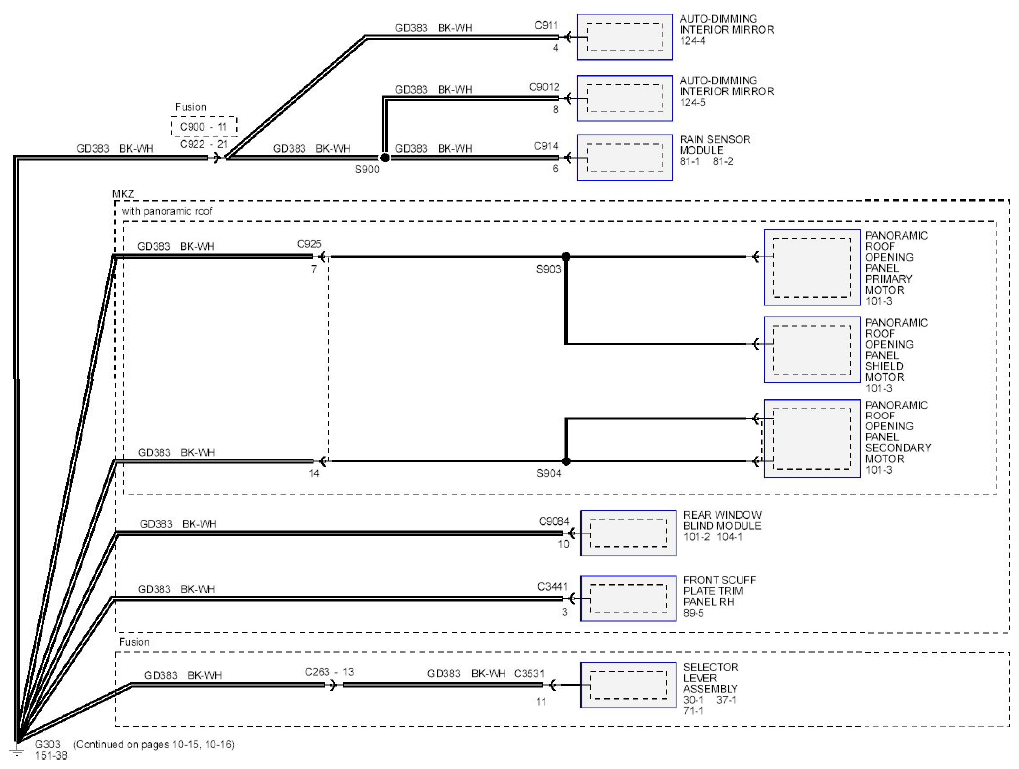

Fig 2: G303 Ground Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

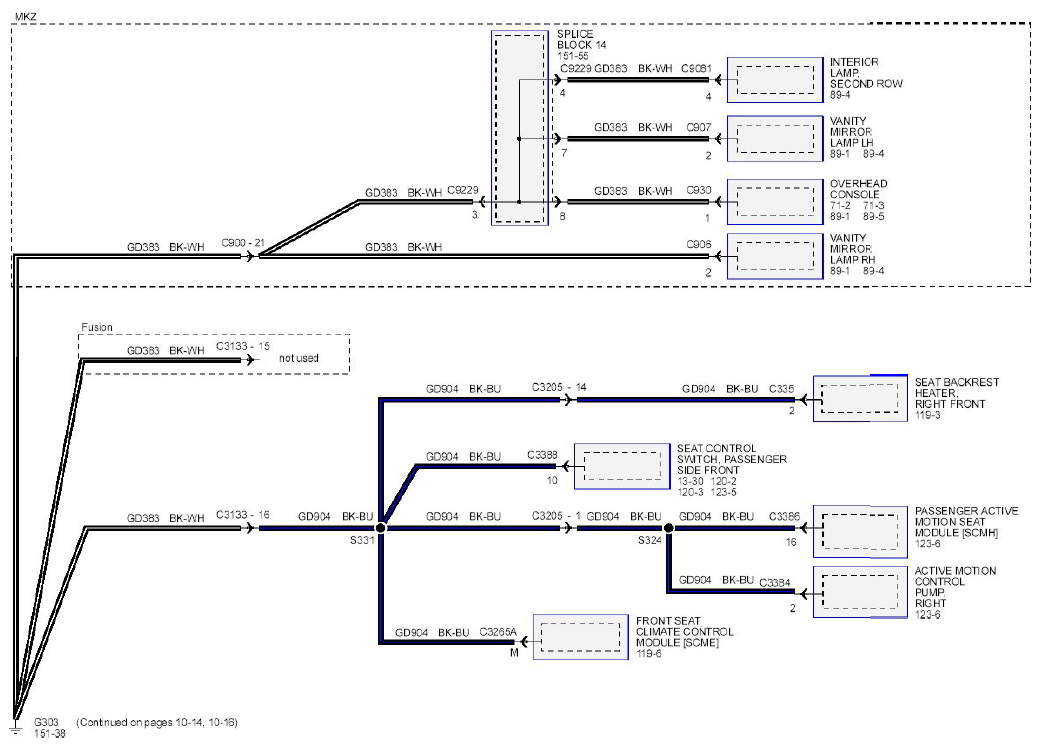

Fig 3: G303 Ground Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
