OEM Ground Distribution -- (Except Hybrid): Grounds: G201

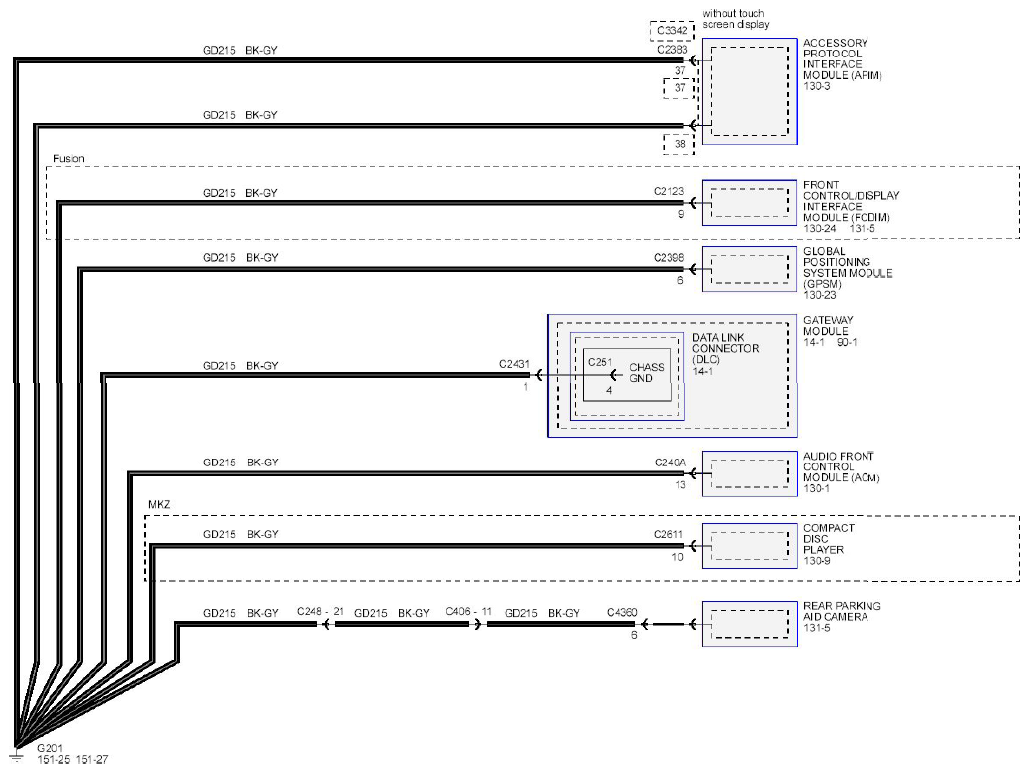

Fig 1: G201 Ground Diagram

G08745160

Courtesy of FORD MOTOR CO.
