OEM Ground Distribution -- (Except Hybrid): Grounds: G101

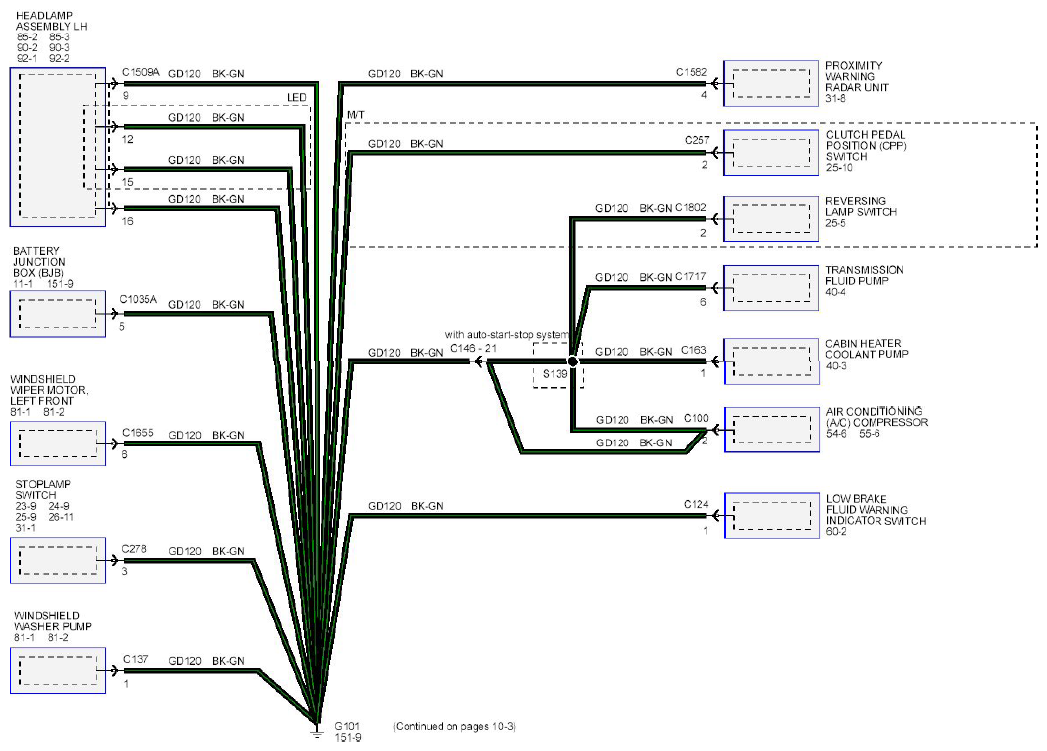

Fig 1: G101 Ground Diagram (1 Of 2)

G08745152

Courtesy of FORD MOTOR CO.

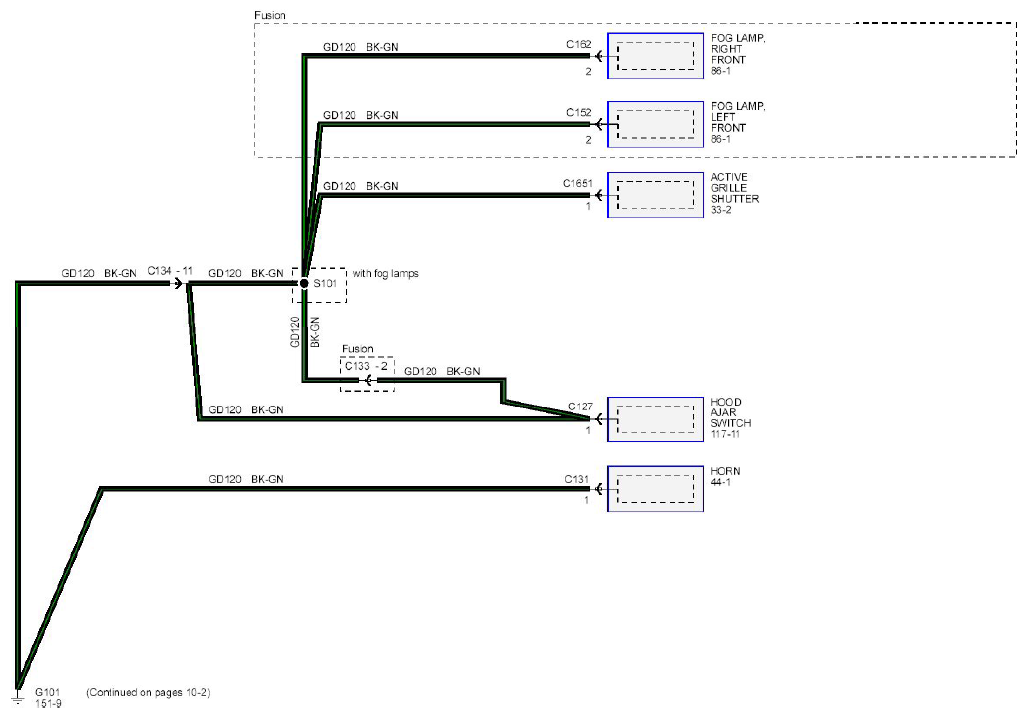

Fig 2: G101 Ground Diagram (2 Of 2)

G08745153

Courtesy of FORD MOTOR CO.
