Deformed (enlarged) female terminals

  1. = Enlarged
  2. = Normal

Any probe entering the terminal may enlarge the contact spring opening creating an intermittent signal.

Insert the correct mating terminal (Location A) from the service kit and feel for a loose fit.

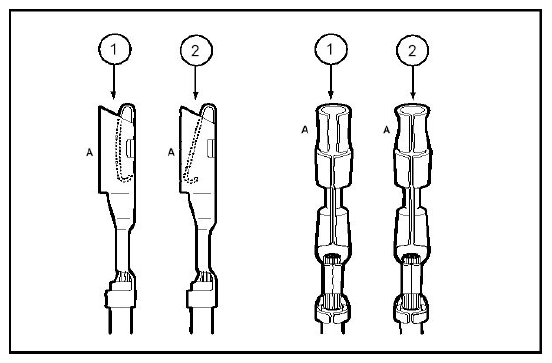

Fig 1: Identifying Deformed (Enlarged) Female Terminals
G08752378Courtesy of FORD MOTOR CO.
