Steering Wheel Switch, LH Lower Connector End View (C2366)

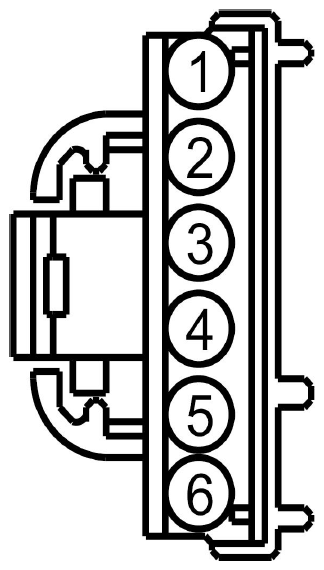

Fig 1: Identifying Steering Wheel Switch LH Lower Connector End View (C2366)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RRH02 (PK)	*	ILLUMINATION GROUND
2	LX106 (BK)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2
3	RX101 (BU-BK)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)
4	LX103 (RD)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3
5	LX104 (VT)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4
6	VLN04 (BN)	*	ILLUMINATION FEED

Available Pigtail Kits

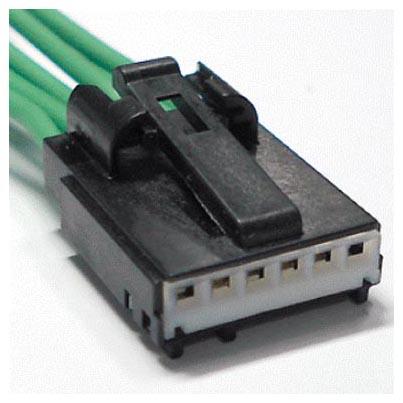

Pigtail Kit Part Number WPT-1006	Service Part Number: 7U2Z-14S411-NB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front)

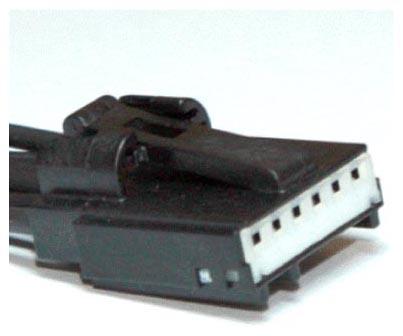

Pigtail Kit Part Number WPT-895	Service Part Number: 7U2Z-14S411-NA  Gauge: 18  Pin material: Tin  Cavities: 6  Vehicle Uses Junction Box - Relay Sensor - Throttle Position Sensor - Transmission Oil Temperature Speaker - Tweeter - RH - Rear Switch - Convertable Top
