Splice Block 26 Connector End View (C2200)

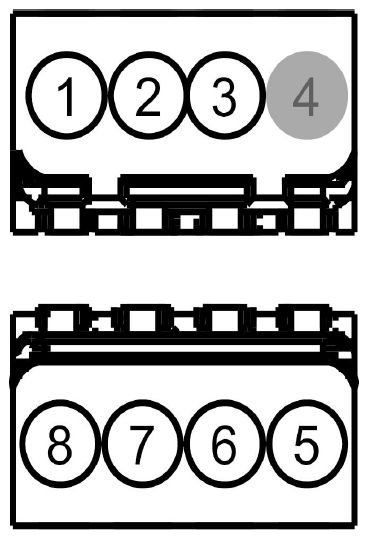

Fig 1: Identifying Splice Block 26 Connector End View (C2200)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER
2	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER
3	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON
4	*	*	Not Used
5	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER
6	SBP13 (GY-RD)	22	FUSE - 13 OR CIRCUIT BREAKER
7	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON
8	CPP05 (WH-VT)	20	CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON
