Splice Block 24 Connector End View (C2198)

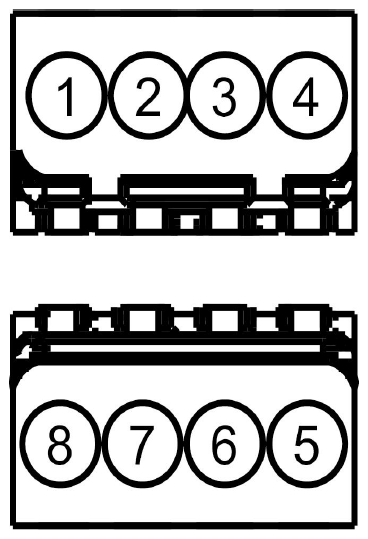

Fig 1: Identifying Splice Block 24 Connector End View (C2198)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
2	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
3	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
4	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
5	VDB06 (GY)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
6	VDB06 (GY)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
7	VDB07 (VT)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
8	VDB07 (VT)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
