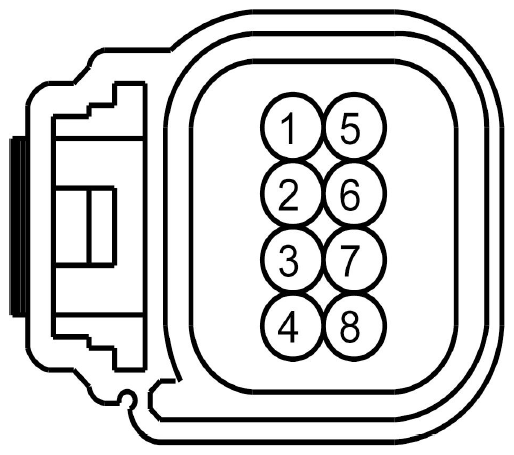

Parking Brake Switch Connector End View (C2015)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VLN04 (BU-WH) | 20 | CTRL MOD. - IP/SWITCH ILLUMINATION | MKZ |
| 2 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | MKZ |
| 3 | CCB20 (BU-WH) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1 | MKZ |
| 4 | CCB23 (VT-GN) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4 | MKZ |
| 5 | CCB25 (BN) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6 | MKZ |
| 6 | CCB24 (WH-OG) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5 | MKZ |
| 7 | CCB22 (WH-BN) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3 | MKZ |
| 8 | CCB21 (GN-VT) | 20 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2 | MKZ |
| Available Pigtail Kits | |
|---|---|

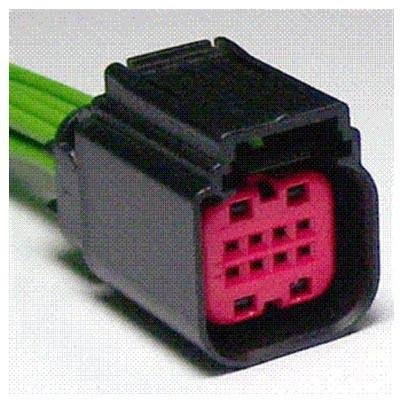

| Pigtail Kit Part Number WPT-833 | Service Part Number: 4U2Z-14S411-LA Gauge: 20 Pin material: Tin Cavities: 8 Vehicle Uses
|

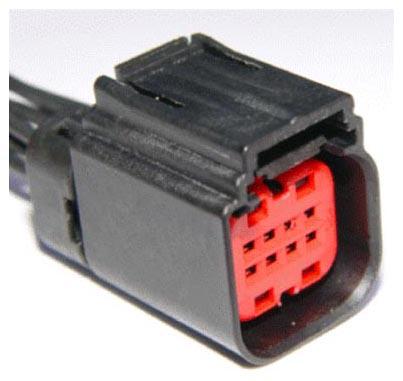

| Pigtail Kit Part Number WPT-1005 | Service Part Number: 4U2Z-14S411-LB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|

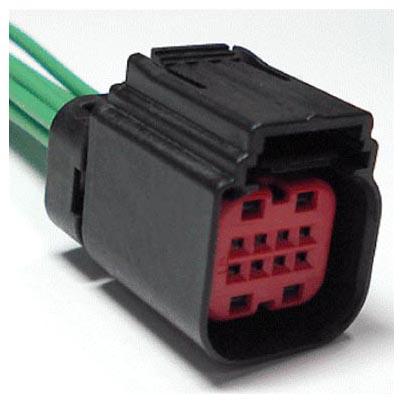

| Pigtail Kit Part Number WPT-1198 | Service Part Number: 4U2Z-14S411-LC Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
