Inline Connector End View (C3134)

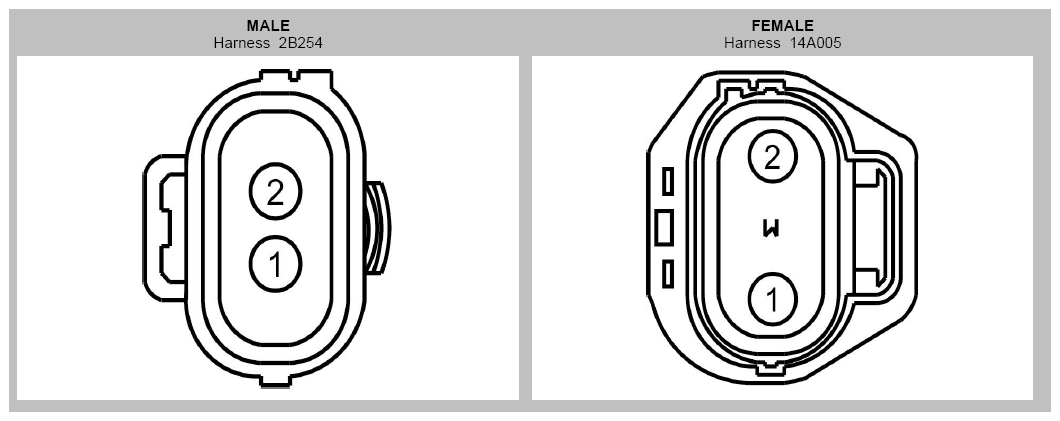

Fig 1: Identifying Inline Connector End View (C3134)
G08756008Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CCB16 (WH-VT) 12 2B254
1 CCB18 (YE-GY) 12 14A005
2 CCB17 (BU-GN) 12 2B254
2 CCB19 (GN-BN) 12 14A005
