Inline Connector End View (C2606)

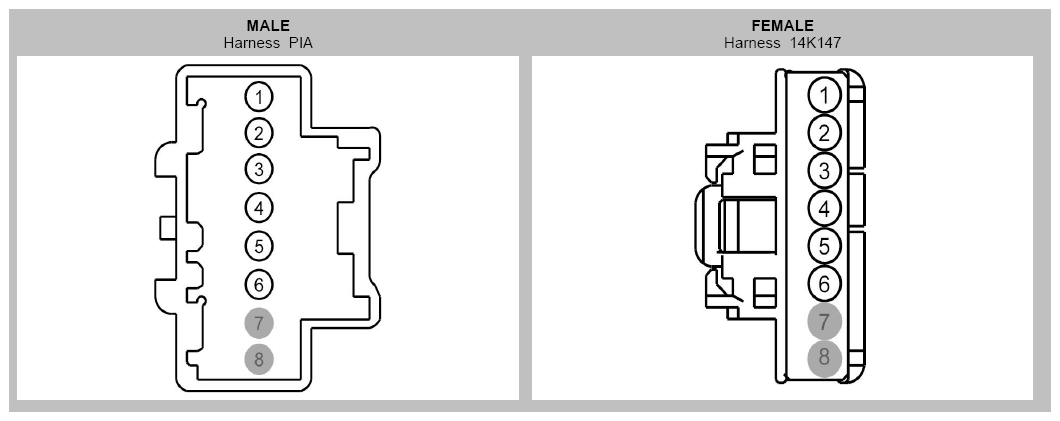

Fig 1: Identifying Inline Connector End View (C2606)
G08755965Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 CRH02 (BU) *
2 LX105 (BK-BU) *
3 RX101 (BU-BK) *
4 RX102 (BU-RD) *
5 VLN04 (BN) *
6 RRH02 (PK) *
7 * *
8 * *
