Fuel Tank Pressure (Ftp) Sensor Connector End View (C3123)

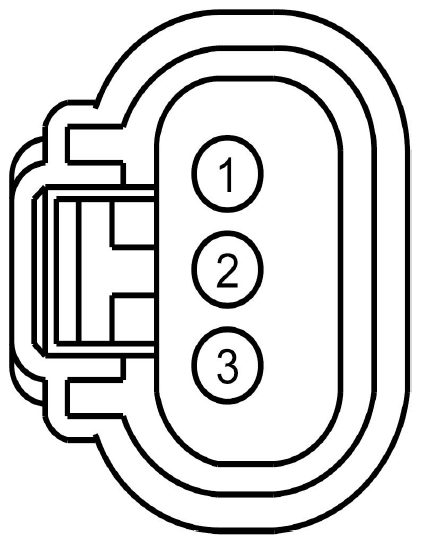

Fig 1: Identifying Fuel Tank Pressure Sensor Connector End View (C3123)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE922 (VT-GN)	18	TRANSDUCER - FUEL TANK PRESSURE (FTP)
2	RE230 (WH-VT)	18	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER
3	LE230 (BN-BU)	18	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (VREF)

Available Pigtail Kits

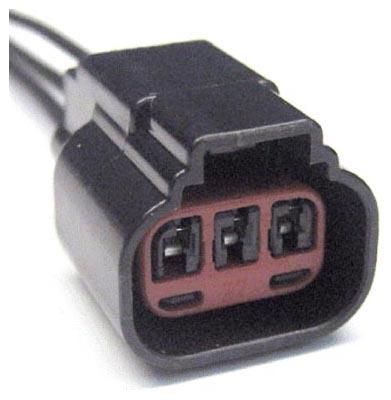

Pigtail Kit Part Number WPT-990	Service Part Number: 8U2Z-14S411-ZB  Gauge: 14  Pin material: Tin (greased)  Cavities: 3  Vehicle Uses Sensor - Cam Shaft Position Sensor - Crank Shaft Position Sensor - Fuel Tank Pressure Transducer Sensor - Turbine Shaft Speed Switch - Fuel Delivery Pressure

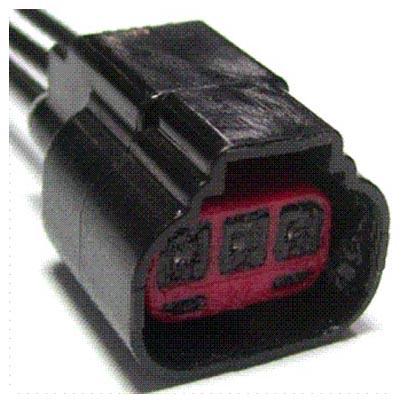

Pigtail Kit Part Number WPT-921	Service Part Number: 8U2Z-14S411-ZA  Gauge: 16  Pin material: Tin  Cavities: 3  Vehicle Uses Pump - Vacuum Resistor - Blower Motor (Rear)
